Mishimoto Baffled PCV Oil Catch Can | 2016+ Ford Focus RS (MMBCC-RS-16PBE2)
Mishimoto*SEE DETAILS
2016+ Ford Focus RS Baffled PCV Oil Catch Can by Mishimoto
The Mishimoto Focus RS Baffled Oil Catch Can is designed and engineered to reduce carbon buildup, a common issue with direct fuel injection engines. Mishimoto engineers found that most vehicles, placing the catch can in the vacuum assisted PCV system of the vehicle will yield the most amount of oil accumulation during normal and aggressive driving. Having only one catch can, tied into the PCV system will, by far, work the best for the vast majority of Ford Focus RSs on the road.

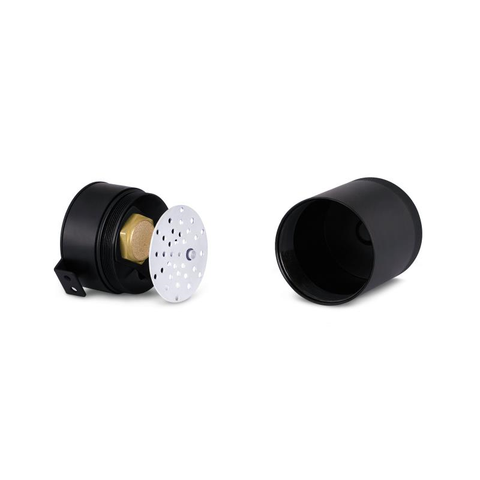

The Mishimoto Focus RS catch can kit uses the Mishimoto 2-Port Compact Baffled Oil Catch Can with a bronze filter, and internal baffled to better separate the oil from the crankcase vapors. The kit comes with two direct-fit silicone hoses that connect the catch can with the crankcase and intake manifold. It also includes one direct fit mounting bracket that not only is extremely easy to install but also mounts the can in a serviceable location, right next to the engine’s oil drain plug! Two plastic, 3/8” barb fittings connect the hoses to the can. Mishimoto's catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently.
Features
- Single can mounting inline with the PCV system separates oil particles using 50 micron bronze filter

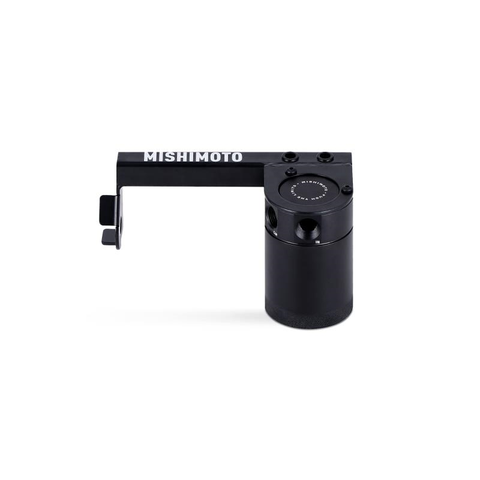

- Application specific bracket mounts
- Black hoses come pre-molded for reliable install

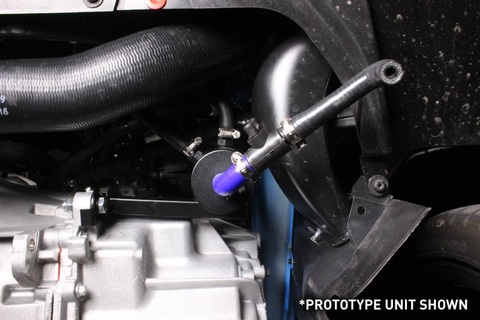

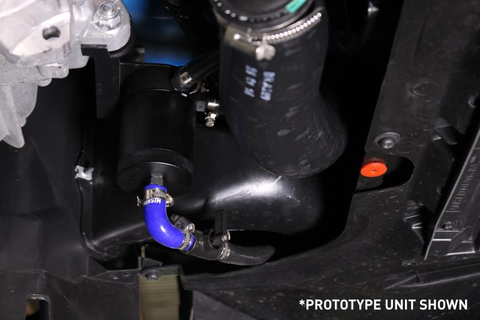

- Catch Can conveniently located next to the transmission
- Billet 6061 aluminum sealed can
- Filters and can are fully serviceable
Benefits
- Helps reduce carbon build-up on the intake valves
- Helps maintain proper octane levels to reduce potential detonation
- Improves oil separation
Please Note:
- After installation, Mishimoto recommends checking the contents of the baffled catch cans every 500 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.
Applications
- 2016+ Ford Focus RS
What's In The Box?
- 1 - Application Specific Mounting Bracket
- 1 - Black, Anodized 6061 Aluminum Catch Can
- 2 - Direct-Fit Hoses
- 2 - Plastic Barbed Fittings
- 7 - Worm-Gear Clamps
- 1 - Air Diverter
- 1 - Internal Baffle & Rod
- 1 - 3/8" NPT Plug
- 1 - Large O-Ring Mounting Hardware
- 1 - Drain Kit
Installation Instructions
Warranty
- Mishimoto Lifetime Warranty
