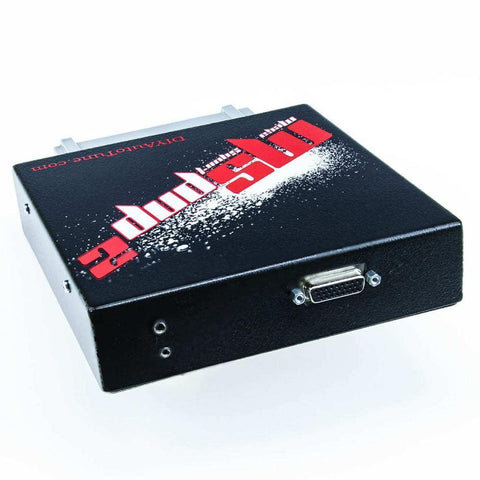

MegaSquirt Gen2 PnP ECU | 86-93 Ford Mustang 5.0L / 86-88 Thunderbird 5.0 (MSPNP2-EEC4A8)

86-93 Mustang 5.0L / 86-88 Thunderbird 5.0L MegaSquirt Gen2 PnP EMS by MegaSquirt

Fully Plug and Play Installation – No wiring required for basic functionality. Average install time is under 1 hour! 5.0 HO base maps is pre-loaded to help your engine start on the first turn of the key

Supports most aftermarket wideband sensors and offers real time tuning and data logging with a laptop connection.

Uses internal MAP sensor – can be used on both cars with factory MAF or speed density. Mounts in the stock location – case is specifically designed to use factory mounting points.

Features

• 16×16 Fuel Tables allow high resolution tuning
• 12×12 Ignition Tables
• Multiple Acceleration enrichment strategies
• Closed Loop Idle Speed Control
• Bank to bank fuel control
• Onboard peak and hold drivers support both high and low impedance injectors – No external ballast resistor is needed!
• Allows removal of stock MAF sensor, if so equipped
• 12×12 Air Fuel Ratio Target Tables for use with wide band O2 sensor for precise tuning and table trim.
• Built-in 2-step rev limiter / launch control with flat shift
• Real time barometric correction
• Internal 4-bar MAP sensor reads up to 44PSI of boost
• Overboost protection
• Closed loop boost control (Requires boost solenoid kit)
• Knock sensor input with adjustable sensitivity
• Headphone output for knock sensor – listen for knock while you tune!
• Table switching input. Change fuel and spark maps on the fly for different fuels, nitrous activation, etc.
• Input for flex fuel sensor – switch between E85 and gasoline on the fly!
• CANBus connector allows interconnection of other MegaSquirt-compatible devices for additional functions (EGT Input, Automatic Transmission Controller, Additional Sensors... the possibilities are limitless!

Applications

• 1986 - 1993 Ford Mustang 5.0L

• 1986 - 1988 Ford Thunderbird 5.0L

What's In The Box?

• 1 - MegaSquirt Gen2 PnP ECU
• 1 - Serial tuning cable (6′)
• 1 - Vacuum Hose for MAP Signal (6')
• 1 - Documentation USB Stick
• Tuning Software

References

• MegaSquirt PnP Gen2 Manual
• Installation Instructions

Warranty

• Manufacturer Standard Warranty
