Manley Ford 2.3L EcoBoost 87.5mm STD Size Bore 9.5:1 Dish Piston - Single | Multiple Fitments (637000C-1)

Platinum Series Lightweight Standard Dish Piston - Single by Manley Performance

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower.

Features

• Design: Dish
• Clearance: 0.0030"
• Over Size: +0.10 mm
• Compression Distance (in): 1.291"
• Dome Volume (cc): -8.20 cc
• Piston Weight: 382 g
• Bore Size: 3.445"
• Bore Size: 87.50 mm
• Top Ring Widths (in): 0.047"
• Second Ring Width (in): 0.047"
• Oil Ring Width (in): 0.110"
• Top Ring Widths (mm): 1.20 mm
• Second Ring Width (mm): 1.20 mm
• Oil Ring Width (mm): 2.80 mm
• Pin Diameter (in): 0.886"
• Pin Diameter (mm): 22.50 mm
• Pin Length (in): 2.250"
• Pin Wall (in): 0.150"
• Pin Material: Premium Chrome Moly

Benefits

• "Contour forgings" provide the optimum balance between strength and weight with no grain-interrupting internal milling.
• Proprietary multi-step top ring groove machining process assures optimum control of the groove's size, geometry, flatness, and finish.
• All final turning is performed in one fixturing resulting in complete squareness of rings to the cylinder wall.
• Federal Form-Scan gauging validates ideal skirt indexing to pinhole and skirt-to-skirt polarity.
• Value - added features such as a pressure balance groove included in all series.
• Precise pinhole machining results in an exact compression distance as well as precise lock ring groove spacing, size, and concentricity.

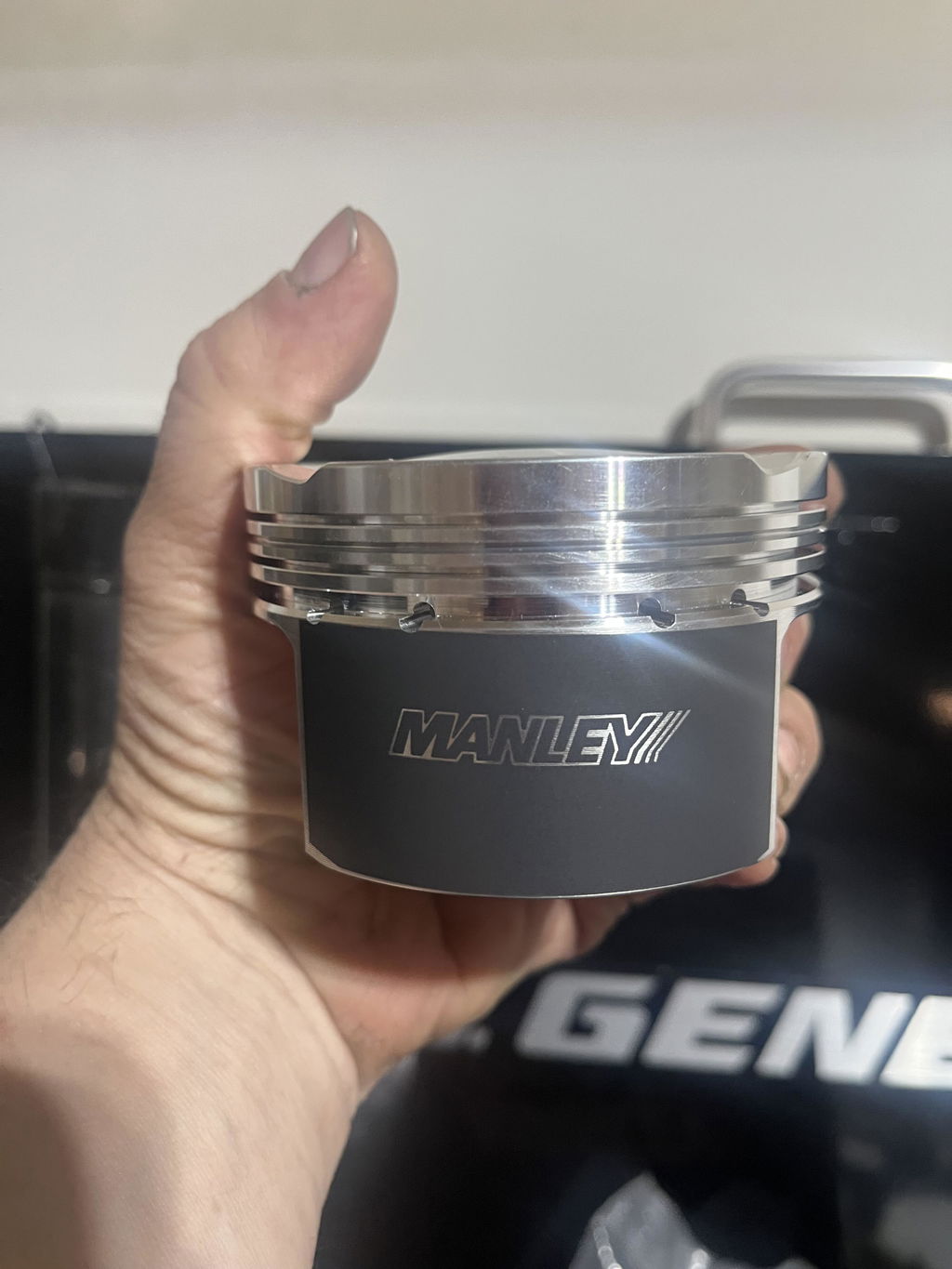

Please Note: The image provided is generic and may not be an accurate representation of the product you will receive

Applications

• 2019– Ford Ranger
• 2016–2020 Ford Explorer
• 2015–2019 Lincoln MKC
• 2021– Ford Bronco
• 2015– Ford Mustang EcoBoost
• 2016–2018 Ford Focus RS
• 2019– Ford Focus ST

What's In The Box?

• 1 - Pistons
• 1 - Wrist Pins
• 1 - Spiral Locks

Warranty

• Manley products, due to their intended use, are sold without warranty.
