KraftWerks Supercharger System | 2010-2015 Chevrolet Camaro SS/Z28 (150-02-1013)
Kraftwerks*SEE DETAILS

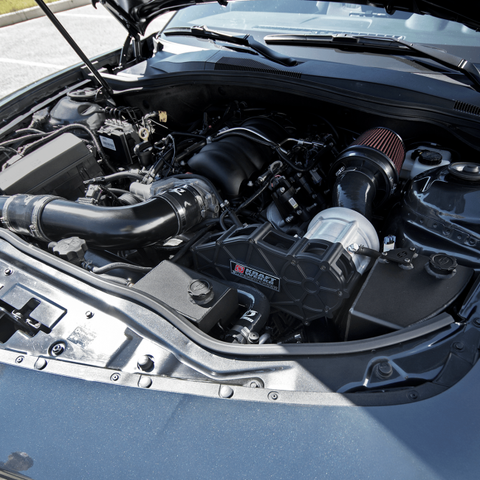

2010-2015 Chevrolet Camaro SS/Z28 Supercharger System (w/o Tuning Solution) by Kraftwerks
The Kraftwerks '10-'15 Camaro SS supercharger system provides instant throttle response and a progressive power curve that increases all the way to redline without the typical spiking or surging turbochargers are known for. This unique, more useable power curve results in reduced cylinder pressures, less strain on engine components, and increased reliability. Rotrex superchargers also operate much cooler when compared to turbochargers and other supercharger systems, which reduces the engine’s intake air temperature as well as its risk of detonation. The heart of the system is the Rotrex C38-91, the largest supercharger offered from Kraftwerks, capable of supporting 700hp.
Each Camaro SS supercharger system is a comprehensive design and includes all necessary components to ensure safe, reliable operation. Standard-issue with each kit is a large, front-mount intercooler (3” inlet and outlet - 24x12x4” thick) to help ensure low intake air temperatures for optimal performance. All necessary aluminum tubing, silicone couplers, and clamps are also included for easy installation. Proper air/fuel ratios are ensured with the included Grams Performance 52lb/hr. fuel injectors, and an optional engine management system. Convenient, plug-and-play fuel injector adapters are also included, making each kit a true bolt-on experience.
Rotrex superchargers are renowned for their compact size, high adiabatic efficiency, low vibration, and quiet operation. Their unique traction drive technology is what makes all of this possible, which, unlike other superchargers, transmits power through frictional forces between its rolling elements. Each Rotrex unit features its own self- contained oiling system that remains independent of the engine. Its dual-action oil pump supplies traction fluid to the supercharger while the supplied cooler ensures proper fluid temperatures at all times.
Features
- Retain Factory A/C and Accessories
- Rotrex C38-91 Supercharger w/ 85mm Pulley (7psi)
- Grams Performance 550cc/min. High Impedance Fuel Injectors w/ Plug-and-Play Connectors
- Front Mount Intercooler (24 x 12 x 4 inch)
- Aluminum Intercooler Piping
- Oil Cooler
- High-Quality CNC-Machined Brackets and Idler Pulley
- High-Quality Fasteners and Hardware
- Recirculating Bypass Valve
Benefits
- Provides instant throttle response and a progressive power curve that increases all the way to redline without the typical spiking or surging turbochargers are known for
- Reduced cylinder pressures, less strain on engine components, and increased reliability
- Its dual-action oil pump supplies traction fluid to the supercharger while the supplied cooler ensures proper fluid temperatures at all times
Please Note: This supercharger system does not come with a tuning solution
Applications
- 2010-2015 Chevrolet Camaro SS
- 2014-2015 Chevrolet Camaro Z28
What's In The Box?
- 1 - Kraftwerks Supercharger System
References
Warranty
- Manufacturer Standard Warranty.
