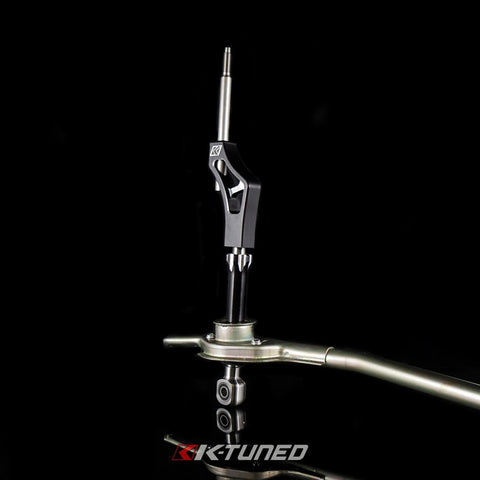

K-Tuned Shifter X-3 | Honda B/D Series (KTD-BD2-SF3)
K-Tuned*SEE DETAILS
Honda B/D Series X-2 Shifter by K-Tuned
K-Tuned released their original B/D Shifter back in 2012. Since then they have released three different versions. K-Tuned has also made some small changes to update the design over the years. Now, in 2019 they've overhauled the three designs.
Starting at the bottom they have replaced the white plastic cage that holds the ball with a Delrin bushing. Delrin is used as it is one of the strongest plastics available, it is resistant to chemicals which is great for automotive applications. Delrin also has high abrasive resistance and low coefficient of friction which basically means it will shift smoothly when you first get it and for a long time. This will give you a tighter feel than the original accordion style plastic housing used on OEM shifters. The Delrin bushing is covered with a TPV bushing to keep it clean and anything from inside the bearing.

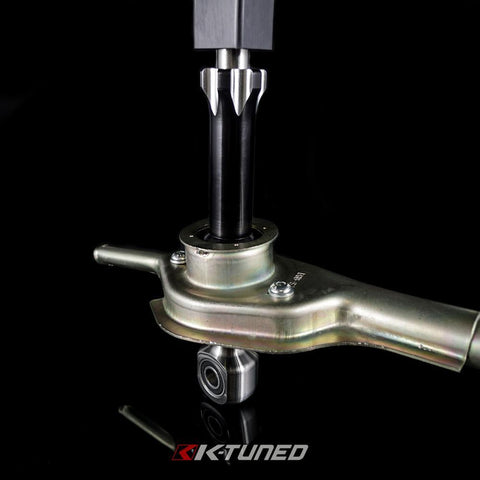

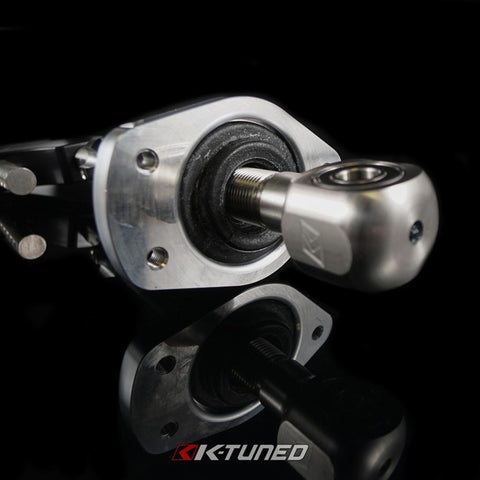

K-Tuned has replaced the stamped steel base plate with a 0.35" aluminum plate which will be sturdier and not rust over time. This aluminum plate will also add to the rigidity and feel of the shifter. Since this is what holds the bearing assembly they found the stock plate to have play, be rotted, or not even there if using new aftermarket linkage. They have also added one more threaded hole to increase the rigidity further and triangulate the assembly.

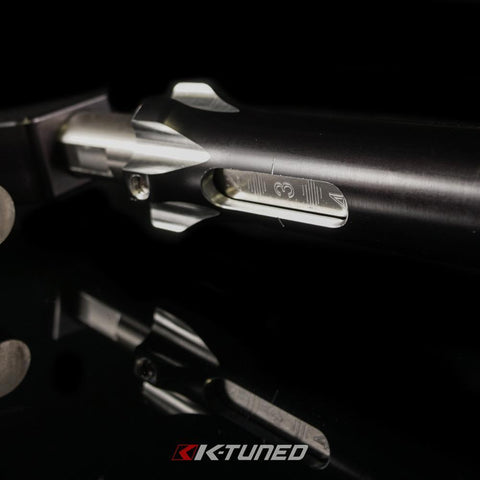

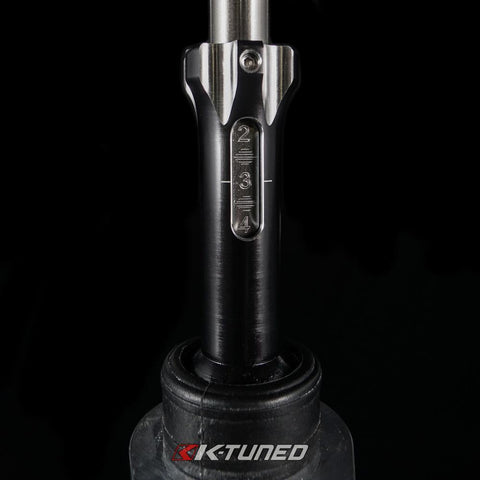

Now, this all wrapped around the redesigned lower shaft. K-Tuned has maintained the adjustable throw from their original shifter but made it adjustable from inside the car. The 6061 aluminum black anodized lower adjustment shaft is machined with notched section to make it easy to spin up or down to adjust the throw. They have machined a sight hole to make adjustment clear and easily measured using the numbered steel internal shaft.
Features
- Delrin bushing will give you a tighter feel than the OEM plastic housing
- Bushing is covered with a TPV bushing to keep it clean and anything from inside the bearing
- 0.35" aluminum base plate which will be sturdier and more rigid while improving feel
- 6061 aluminum black anodized lower adjustment shaft is machined with notched section to make throw adjustments easy
- Sight hole to make adjustment clear and easily measured using the numbered steel internal shaft
- Anodized black lbows and machined edges for a clean and uniform look
Please Note: D15/D16 will use stock steel plate. Remove billet plate on base and reuse factory plate. Does not fit EM2/ES1 D17.
Applications
- Honda B-Series Engines
- Honda D-Series Engines
- *D15/D16 will use stock steel plate. Remove billet plate on base and reuse factory plate
- *Excludes EM2/ES1 D17
What's In The Box?
- 1 - B/D Series X-3 Shifter
References
Warranty
- Manufacturer Standard Warranty
