K&N Typhoon Air Intake System | Multiple Fitments (69-1009)

Typhoon Air Intake System by K&N

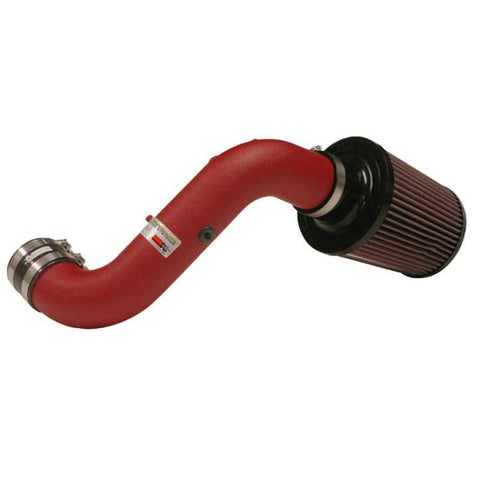

The K&N 69-1009TP Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Acura RSX Type-S and Honda Civic SI or VI models.

The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine’s RPM range. The 69-1009TP air intake comes with a black rubber topped K&N high-flow air filter that installs into the previous air box space. Air is directed through the intake tube into the engine’s throttle body for a guaranteed power gain. The intake tube has an attractive chrome-like finish that's made to last and it accommodates the factory idle air bypass control thermal valve vent hose, air temperature sensor and crank case vent hose.

The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the vehicle applications and specific CARB status for each vehicle and air intake.

Features

• Guaranteed to increase horsepower
• Designed to improve throttle response and engine sound
• Free-flowing aluminum tube
• Easy to install, usually in 90 minutes or less
• Filter lasts up to 100,000 miles before service is required
• Replaces entire factory air intake system
• Washable and reusable lifetime air filter
• K&N Million Mile Limited Warranty

CARB EO Number D-269-38

Applications

• 2001 - 2005 Honda Civic 2.0L
• 2002 - 2005 Honda Civic Si 2.0L
• 2000 - 2000 Honda Civic Type-R 2.0L
• 2002 - 2006 Acura RSX Type-S 2.0L

Specifications

• Horsepower Gain - 10.48 HP @ 7014 RPM
• Replacement Filter - RU-4870
• Air Filter Material - Cotton Gauze
• Air Filter Outlet Shape - Round
• Air Filter Large End Diameter - 6 in (152 mm)
• Air Filter Height - 6.5 in (165 mm)
• Clamp Material - Stainless Steel
• Clamp Style - Regular
• System Type - Short-Ram Intake System
• Intake Pipe Color/Finish - Polished
• Intake Pipe Material - Aluminum

What's In The Box?

• 1 - K&N Air Filter (RU-4870)
• 1 - K&N Typhoon Air Intake
• Couplers and Clamps

References

• Installation Instructions

Warranty

• K&N Million Mile Limited Warranty
