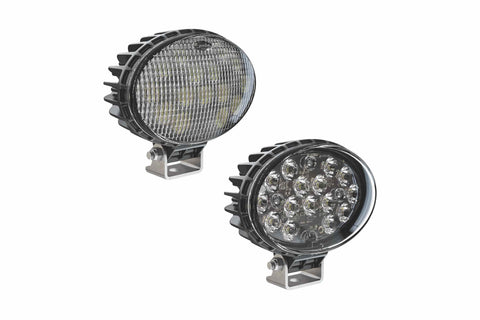

JW Speaker: 7150T-12/24V PC Trapezoid Beam w/12in wires (1801571)

The Model 7150 is one of our brightest and toughest LED construction work lights. It features a rugged yet lightweight single-piece aluminum housing that's not only highly durable, but also corrosion resistant. The Model 7150 is designed with stable harness connections to endure harsh applications, withstanding high pressure washing and steam cleaning. It is an excellent choice for applications such as mining and construction where a high degree of visibility and durability is required.

Features

• Height: 155.96 mm / 6.14 in
• Width: 172.47 mm / 6.79 in
• Depth: 77.11 mm / 3.04 in
• Shape: Oval
• Outer Lens Material: Polycarbonate
• Outer Lens Color: Clear
• Housing Material: Die-Cast Aluminum
• Housing Color: Black
• Mounting Hardware Description: (x1) 1/2"-13 x 1"
• Minimum Operating Temperature: -40 degC / -40 degF
• Maximum Operating Temperature: 65 degC / 149 degF
• Connector or Wiring: Deutsch DT04-2P
• Mating Connector: Deutsch DT06-2S
• Product Weight: 2.80 lbs / 1.27 kgs
• Shipping Weight: 2.10 lbs / 0.95 kgs
• Input Voltage: 12-24V DC
• Operating Voltage: 10-32V DC
• Transient Spike Protection: 330V Peak @ 1 HZ-100 Pulses
• Red Wire Power: Positive
• Black Wire Ground: Negative
• Current Draw: 5.50A @ 12V DC, 3.20A @ 24V DC

Applications

• Universal

What's In The Box?

• HOUSING: 1x JW Speaker Model 715 LED Oval Work Light
• PART NUMBER: 1801791, 1801581, 1801621, 1801781, or 1801571
• OTHER: Instruction Card + JW Speaker Sticker

References

• Installation Instructions

Warranty

• WARRANTY: Lifetime Limited
