JM Fabrications Forward Facing Exhaust Manifold | DSM Multiple Fitments (DSM-EXMANI)

JM Fabrications
SKU:
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 651-927-4510

Email - sales@maperformance.com

Fits Your:
FREE Delivery Expected by , when ordered within hrs and mins
Turbo Flange
Wastegate Flange
EGT Bung
 Need Help Getting Started?
Call Or Text Our Experts at 651-927-4510

$1,111.21 $1,307.31Instant Savings of 15% ($196.10)

Earn  $22.22 In MAP Rewards!

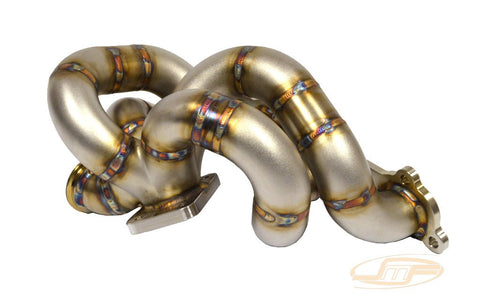

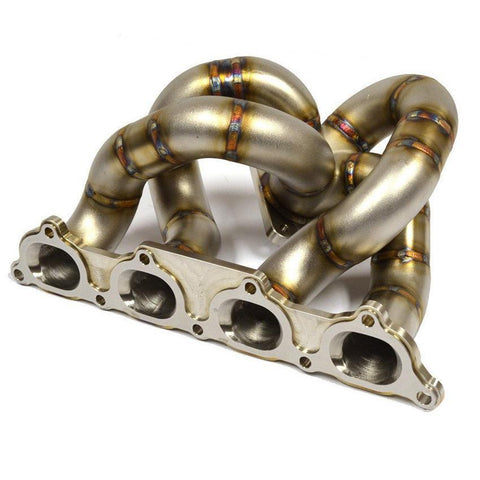

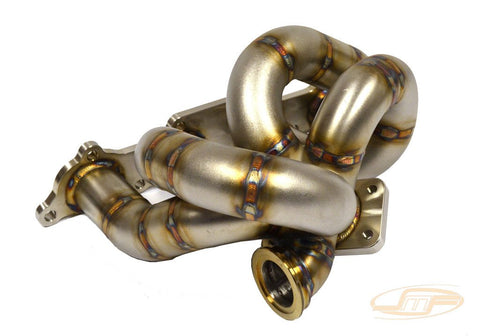

DSM Forward Facing Exhaust Manifold

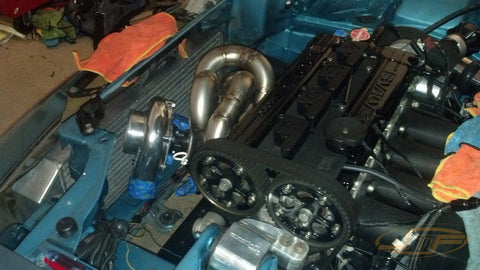

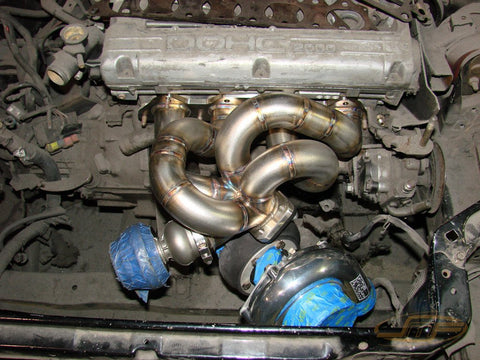

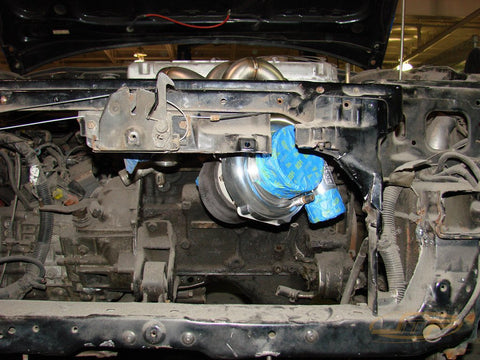

Our newest addition to the DSM manifold lineup. This is our DSM forward facing turbo, tubular exhaust manifold.  It places the turbo under the radiator support with the inlet facing forward for maximum air flow.  Made from thick walled 304 stainless steel tubing. Featuring multi-pass TIG welded joints and CNC machined 1/2" thick 304 stainless steel flanges. The ports are gasket matched and smoothed to perfection for the best of flow, each flange is surfaced for a leak free seal.

This manifold is for the hard core guys only!  You will need to remove the AC system and use a 1/2 sized radiator.  Some cutting or frame modifications may be required.  Also available for this manifold is a V-Band O2 housing with the option for a recirculated wastegate or dump tube. Designed for TIAL GT28/30/35 housings along with your standard open T3 housing.

Features

  • Flange Material: 304 Stainless
  • Flange Thickness: 1/2"
  • Runner Material: Schedule 10 304 Stainless
  • Runner Size: 1-1/2" NPS

Applications

  • Various 4g63 DSM applications

What's in the Box?

  • JM Fab DSM Forward Facing Exhaust Manifold

Warranty

  • 3 year warranty on all weld defects to the original owner
    Heat wrapping is NOT recommended and will void the warranty.
