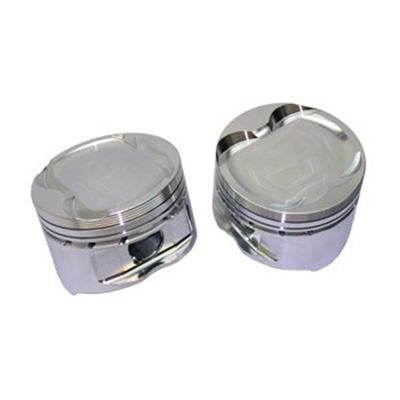

JE Shelf Pistons 86.5mm Bore 8.5:1 CR | Toyota 2JZGE / 2JZGTE (296932)

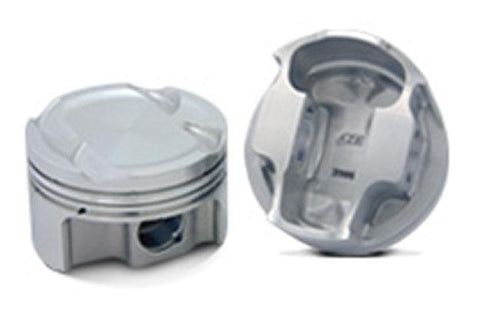

JE Asymmetrical FSR Pistons for Toyota 2JZGTE / 86.5mm Bore

JE asymmetrical pistons use a forged-side-relief design (FSR) with major and minor thrust skirts, inboard pin bosses and a shorter and stiffer wrist pin. Over the years, the skirt designs were tweaked, sometimes significantly, as designers refined their function according to changing performance requirements. The primary focus of the asymmetrical piston design is weight and friction reduction via the FSR’s smaller, lighter skirt on the minor thrust side. FSR (Forged Side Relief) skirts are actually stronger than full round designs, but they require more fine tuning of the skirt profile to match full round wear characteristics.

Features

• Crown requires no deburring or preparation
• 2618 T6 high tensile forged aluminum
• NEW ASYMMETRICAL FSR forging! State of the art asymmetrical skirt technology reduces friction and mass while providing a more rigid and durable platform (Skirt Style F)
• In this environment, higher boost levels or heavy nitrous usage necessitate JE's wrought 2618 alloy
• FSR pistons include offset pins for quiet operation
• Dished pistons feature new Smooth Finished Crown process for excellent flame travel
• 1.0 x 1.2 x 2.8mm ring widths
• .866 x 2.250 straight wall carbon steel wrist pin provided
• Pin fitting and wire locks included
• Rings included

Applications

• 1993-1998 Toyota 2JZGTE Supra Turbo

What's In The Box?

• (6) Pistons
• Rings and Pins

Warranty

• Manufacturer Standard Warranty
