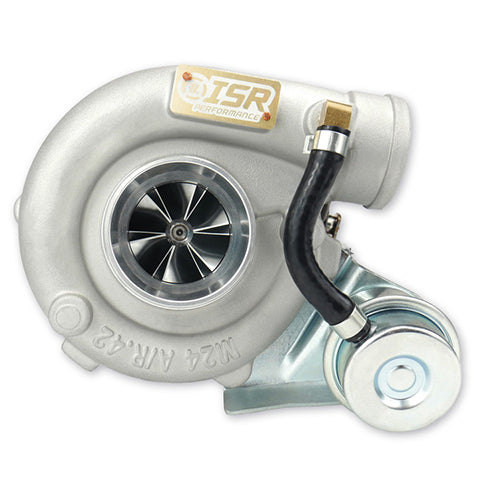

ISR Performance Ball Bearing RSX2860 Turbo (IS-RSX2860R)

Ball Bearing RSX2860 Turbo by ISR Performance

ISR has released their new small frame ball bearing turbo upgrade options for those looking for bottom mounted turbos on their SR/KA replacing the factory t25 or t28 turbo.

The RSX2860 turbo feature dual ball bearing, billet compressor wheel and slip on style compressor housing. All ISR turbos feature dual step gap rings and are balanced to within OEM specifications. Get big power and reliability and a fraction of the cost.

Features

• Constructed from high-quality materials
• Rated HP 250-300
• Dual Ball Bearing
• REQUIRES OIL RESTRICTOR .036”-.040” (part # IS-OR-3036)
• Oil Feed Thread: 7/16-24
• Oil Drain Size: GT style (part # IS-GTDRN)
• Wheel Specs:
• Comp: IND 44mm, EXD 60mm
• Turbine: IND 53mm, EXD 46mm
• Compressor Housing: .42AR
• Inlet: 2.25"
• Outlet: 2.0"
• Turbine housing: T2 .64ar
• Turbine Discharge Flange: GT 5 Bolt

Applications

• Universal

What's In The Box?

• 1 - Ball Bearing RSX2860 Turbo

Warranty

• ISR's Standard Limited Warranty
