2002-2005 Subaru WRX Head Gaskets (1 Pair w/ Fire-Lock Rings) Subaru EJ20, 93.5mm, .051", for 14mm Head Studs Only by IAG Performance

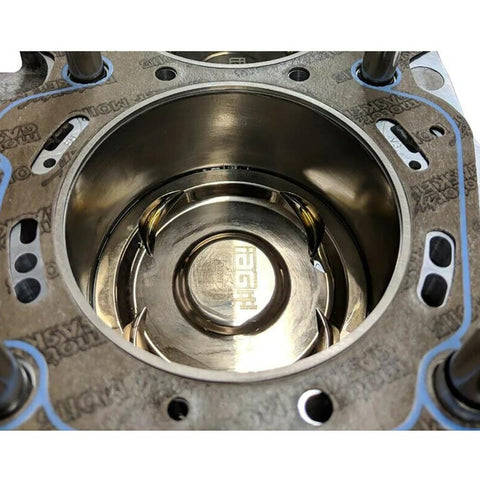

The IAG Performance Fire-Lock head gasket solution was created after years of research and development testing to prevent head gasket failure on high horsepower and high boost Subaru EJ Series engines. This solution is loosely derived from diesel technology where a counterbore step is machined around each cylinder bore allowing specially sized fire rings to drop into the machined area and head gasket bores.
The shims are designed to create a compression seal once the heads are installed and torqued into place. IAG fire rings are manufactured to a very strict tolerance from a proprietary alloy and are then put through a heat-treatment process. The gaskets are manufactured from an asbestos-free composite raw material and feature silicone-based beading applied to critical areas to improve sealing around all water and oil passages. The combination of the alloy compression shims and gaskets assure maximum sealing for a Subaru EJ20 turbocharged engine.
Features
- Composite Material
- IAG-Spec Alloy Ring
- Specifically designed for 14mm Head Studs
- Silicone Beading
- 93.50mm Bore
- .051" Thickness
Benefits
- Intended for High Horsepower High Boost applications
- Gaskets sold in pairs
Please Note: Must be used with 14mm head studs.
Applications
- 2002-2005 Subaru WRX
What's In The Box?
- 2 - Head Gaskets
- 4 - Fire-Lock Rings
Warranty
- IAG's Limited 1 Year Warranty
