iCarsoft CR Pro Multi-System Professional Diagnostic Tool (CR Pro)

CR Pro Multi-System Professional Diagnostic Tool by iCarsoft

iCarsoft CR Pro is a Professional and powerful vehicle fault diagnosis tool for multi-brand vehicles (more than 40 kinds of vehicle makes) developed by iCarsoft Technology Inc.

With a 4.0” TFT LCD and unique diagnostic software, it features full ECU diagnosis of most vehicle brands and test modes mainly include: CANBUS, ISO9141, KWP2000, and J1850 etc. It enables technicians to accurately diagnose complex problems.

Features & Benefits

• iCarsoft CR Pro can do it all-reads and clears trouble codes on most of the systems such as engine, transmission, ABS and Airbag etc.
• Support OBDII/EOBD Ten Modes of Operation.
• Read Live Data.
• Full ECU Diagnosis.
• Applies to most of the vehicle models which equipped with OBDII-16 DLC.
• Easy To Use with Silicone Keys.
• Oil Light/Service Reset: Support service lamp reset.
• Electronic Parking Brake (EPB) system maintenance deactivates and reactivates the EPB system for replacement and initialization.
• Battery Management System (BMS), registers new battery to the BMS while battery replacement.
• Diesel Particulate Filter (DPF) regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator.
• Electronic Throttle Control system (ETC) relearns the throttle valve control value while clear or replaces the throttle valve.
• Steering Angle Sensor (SAS) calibration, calibrates the steering wheel to straight ahead, or recalibrates.
• ABS Bleeding, release the air to restore ABS Brake sensitivity, or relearn while ABS replaced.
• Injector coding, relearn the injector control parameter while the injector renewed or replaced SAS while steering part replacement.
• The Print Data function allows you printing out diagnostic data recorded by the scan tool or customized test reports.
• Battery test allows you getting the voltage of battery with OBD port by the scan tool when the engine starts.
• DTC Library to lookup when user is operating this tool.
• Upgrade via PC.
• Multi-language: English, German, Dutch, Spanish, French.

OBDII Functionality

• Read Codes
• Erase Codes
• I/M Readiness -- I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
• DataStream
• Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
• O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.
• On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
• Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.
• Vehicle Information -- The option displays the vehicle identification number (VIN),the calibration verification number (CVN), and other information of the test vehicle.
• Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
• Turn off Check Engine Light (MIL), clear codes and reset monitors
• Read live PCM DataStream
• Support CAN (Controller Area Network) and all other
• Multilingual menu and DTC definitions- English, Spanish, and German, etc.
• Read pending DTCs
• Read permanent DTCs
• DTCs search
• Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.

Please Note

• Certain functions may be limited from the vehicle manufacturer due to the requirement of a special factory access code.
• This scan tool covers over 20 years of models, so some functions may not be available on all years/models.

Applications

• 1996+ OBDII Compliant US/Asian Vehicles
• 2001+ OBDII Compliant PETROL European Vehicles
• 2004+ OBDII Compliant DIESEL European Vehicles

Specifications

• Display: 4.0″ TFT LCD, 480*320 Pixels
• Operation Temperature: 0°C ~ 50°C
• Storage Temperature: -20°C ~ 70°C
• Operating Voltage: 9 ~ 18V
• Operating Current: 150mA@12V (Typical)
• Power Consumption: 1.8W (Typical)
• Dimension: 206x104.1x32.6 mm

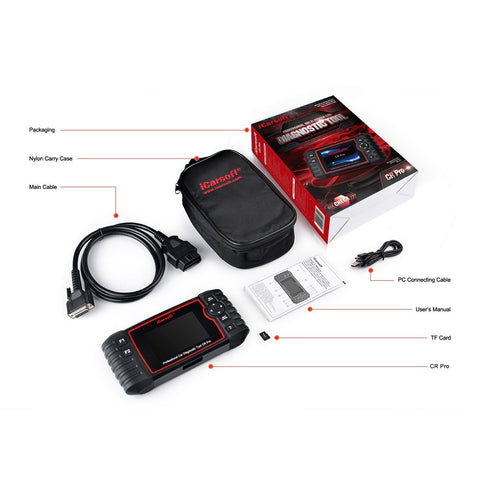

What's In The Box?

• 1 - Main Unit
• 1 - Hardcopy User's Manual
• 1 - Main cable
• 1 - Data cable
• 1 - TF Card (Within the main unit)
• 1 - Nylon carry case

Warranty

• Manufacturer Standard Warranty
