iCarsoft CR Plus Multi-System Professional Diagnostic Tool (CRPlus)

CR Plus Multi-System Professional Diagnostic Tool by iCarsoft

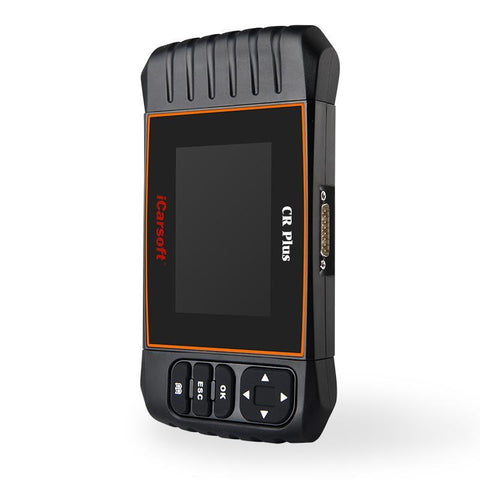

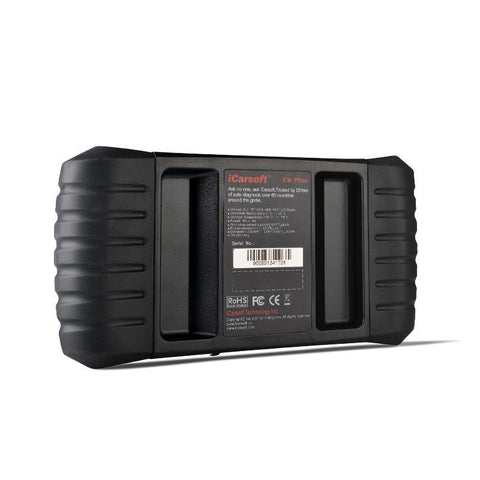

iCarsoft CR Plus is a well-built comprehensive diagnosis instrument by iCarsoft.

It's not only including full function of OBDII/EOBD, but also support more function of Four system( Engine, automatic transmission, anti-lock braking system and airbag ) of certain models of car, such as read and clear code, multi languages, data flow picture display, graph. It also includes Electronic Parking Brake (EPB) release, Steering Angle Sensor (SAS) and Oil Service Light resets. View Engine, ABS, SRS along with A/T enhanced data.

Features

• OBDII diagnostic full function
• Multiple car models (covering over 40 prevailing models from Asia, America and Europe).
• Support 4 Systems: Engine, Transmission, ABS, and Airbag.
• Basic diagnostic functions: read DTCs, clear DTCs, and read data stream
• Support DTCs help, data stream wave display, history data record and replay
• Online upgrade, you can download the latest version anytime anywhere.
• Auto module search
• Enhanced OBDII Mode 6
• Supports vehicles 1996 & newer ( OBDII & CAN )
• Retrieves generic P0, P2, P3 & U0 codes, along with manufacturer specific P1, P3 & U1 codes – both permanent & pending
• Read & Clear Check Engine Lights
• Turn off MIL & reset monitors
• Displays DTC definitions right on the screen
• View freeze frame data & I/M Readiness monitor status
• Display live PCM data stream & O2 Sensor test data
• Graph, record & replay data in full color
• Resets Oil Service Light
• Brake Pads Reset
• Steering Angle Sensor Calibration
• Code cause / solution tips guide users to the root cause of trouble codes faster, saving diagnosis and repair time
• Retrieves vehicle information ( VIN, CIN and CVN )

OBDII Functionality

• Read and Erase Codes
• I/M Readiness -- I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
• DataStream Capabilities
• Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
• O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.
• On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
• Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.
• Vehicle Information -- The option displays the vehicle identification number (VIN),the calibration verification number (CVN), and other information of the test vehicle.

Please Note

• Certain functions may be limited from the vehicle manufacturer due to the requirement of a special factory access code.
• This scan tool covers over 20 years of models, so some functions may not be available on all years/models.

Applications

• 1996+ OBDII Compliant US/Asian Vehicles
• 2001+ OBDII Compliant PETROL European Vehicles
• 2004+ OBDII Compliant DIESEL European Vehicles

Specifications

• Display: 4.0″ TFT LCD, 480x320 Pixels
• Operation Temperature: 0°C ~ 50°C
• Storage Temperature: -20°C ~ 70°C
• Operating Voltage: 9 ~ 18V
• Operating Current: 150mA@12V (Typical)
• Power Consumption: 1.8W (Typical)

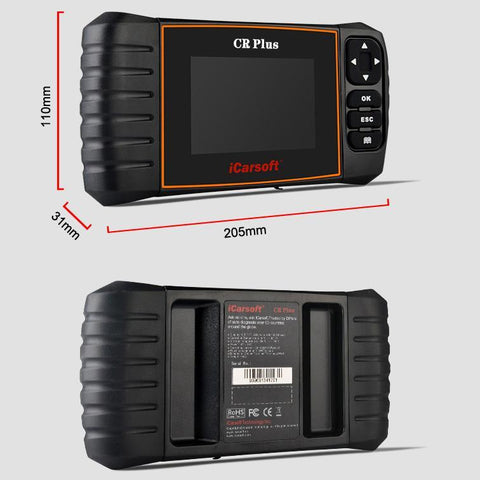

• Dimension: 205x110x31mm

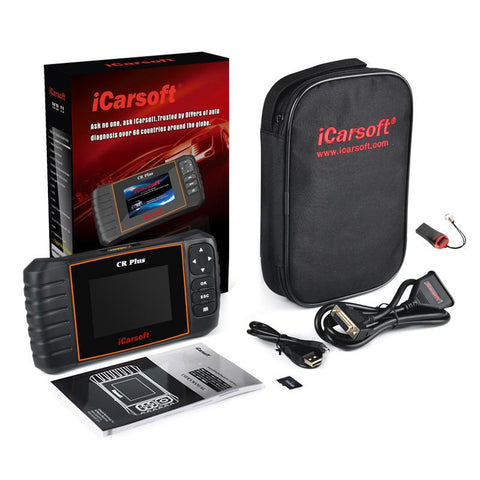

What's In The Box?

• CR Plus Main Unit
• Hardcopy User's Manual
• Main cable
• Data cable
• TF Card (Within the main unit)
• Nylon carry case

Warranty

• Manufacturer Standard Warranty
