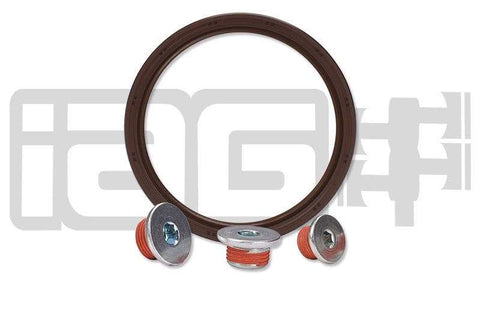

Include Oil Plugs & Rear Main Seal
 Need Help Getting Started?
Call Or Text Our Experts at 651-927-4510

$5,999.99

Learn more about MAP Rewards!$0.00

IAG Stage 3 Extreme FA20 DIT Closed Deck Subaru Short Block

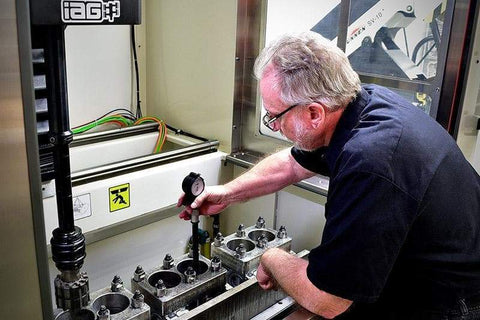

The IAG Stage 3 Extreme short block starts with new Subaru FA 2.0L engine case halves, IAG machines the case halves assembled together in our Haas VF-4SS CNC mill to accept the IAG CLOSED Deck Inserts that transform the block into a solid deck. The unique inserts feature small passages that allow needed coolant flow to the deck surface. The case halves are then CNC machined with O-ring receiver grooves around the bore surface as well as drilled and tapped to accept 1/2" head studs that greatly reduce head gasket failure during high cylinder pressure scenarios. Next, the short block is Deck Plate bored and honed that to 86.25mm on our in-house Sunnen SV-30 the most advanced automotive cylinder hone available. IAG‘s in-house honing process is able to set piston to wall clearances tighter for a quieter running engine. The short block is measured and assembled using a new 2015-18 Subaru 2.0L WRX crankshaft that is matched to King main bearings. Manley I-Beam rods with ARP2000 rod bolts are utilized along with King or ACL rod bearings. The case halves are sealed with new OEM case bolts and sealant. Finally, IAG-Spec 86.25mm forged pistons are spec'd and installed along with an OEM oil plug finishing off the short block.

Features

  • 10.0:1 (.6 lower than stock compression) on standard gasket thickness
  • The IAG Stage 3 Extreme Short Block has a power output rating of 800BHP
  • All IAG Short Blocks are balanced and blueprinted

Applications

  • 2015-2018 Subaru WRX

What's In The Box?

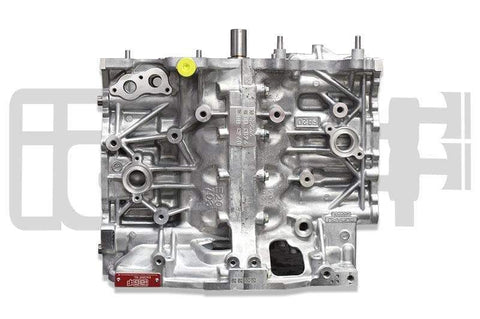

  • Case Halves - Converted to Closed Deck using brand new Subaru OEM case halves, bored and honed to 86.25mm
  • O-Ringing - Machine and O-Ring Deck Surface

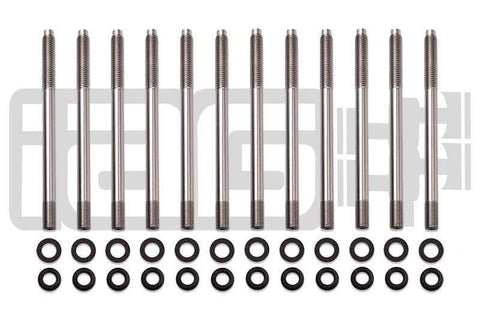

  • Head Studs - Machine Case to 1/2" head studs - * Head studs are sold separately

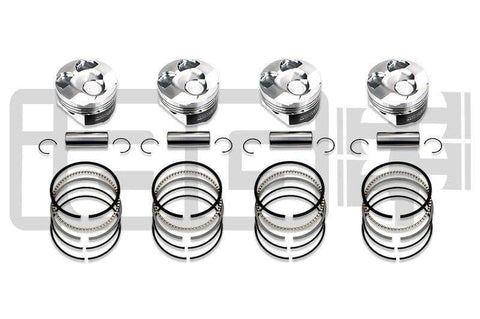

  • Pistons - IAG-Spec 86.25mm Forged Pistons, Ring Set, and .150" x 2.250" Chromoly Wrist Pins.

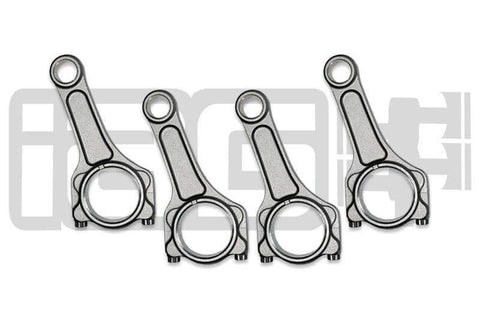

  • Connecting Rods - Manley I-Beam / ARP2000 Rod Bolts
  • Rod - ACL or King XPG

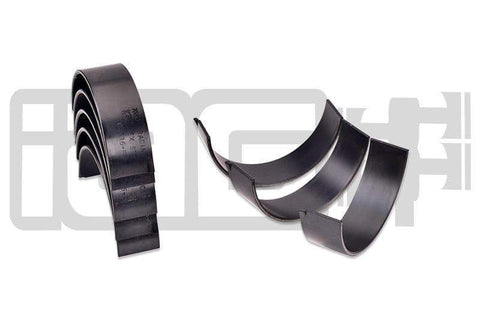

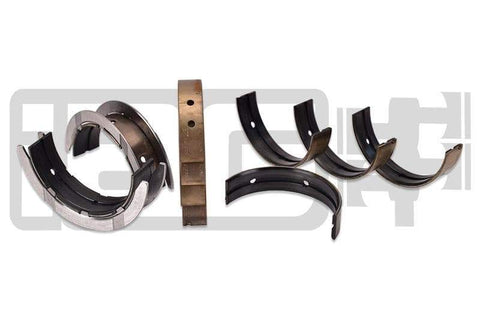

  • Main Bearings - King XPG

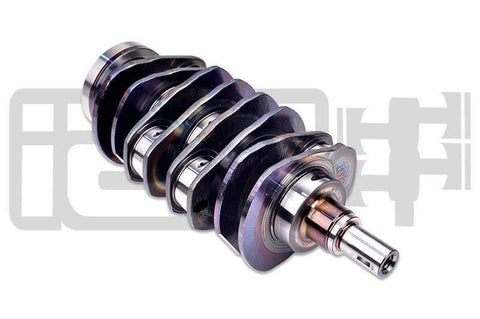

  • Crankshaft - New Subaru FA20 DIT WRX crankshaft
  • Case / Main Bolts - Standard Subaru case bolts

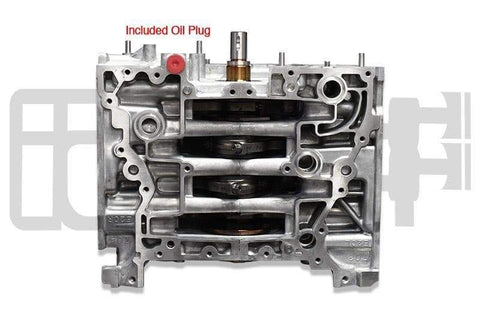

  • Hardware - OEM Oil Plug - comes preinstalled at the oil pan location

Notes

  • IAG Original part number is IAG-ENG-1312, which has been superseded to IAG-ENG-1313
