IAG Side to Top Feed Fuel Rail Conversion Kit | 04-06 Subaru STI / 05-07 LGT / 04-05 FXT (IAG-AFD-2132)

04-06 Subaru STI / 05-07 LGT / 04-05 FXT Side Feed to Top Feed Fuel Rail Conversion Kit by IAG

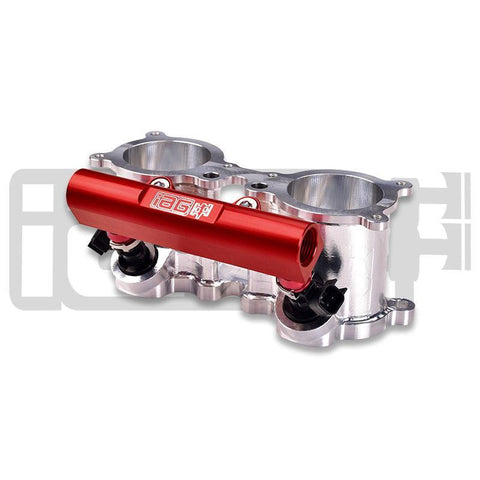

The previous generation Subaru’s that utilize side feed injectors are limited to specific flow sizes as well as a large expense to completely convert the system over to top feed. IAG provides a simple fuel rail solution that lowers the conversion cost to top feed injectors on older STI’s, Foresters XT's and Legacy GT’s. The conversion kit allows you to keep your side feed TGV’s in place, simply swap in our injector conversion bosses, new conversion rails, hardware and your choice of top feed injectors*.

The IAG Performance Side Feed to Top Feed Fuel Rail Conversion Kit is designed to increase the power ceiling on your Subaru's fuel system. The factory fuel rails function in a series, which means that each cylinder's fuel is delivered after the other. As horsepower rises past the 350whp mark, the stock rail often does not have the capacity to deliver fuel to the last cylinder effectively. As a result, that last cylinder can run lean, which can result in catastrophic failure. The IAG billet fuel rails are designed to eliminate this problem.

First, our fuel rails operate in parallel format, each cylinder bank receives equal fuel, matching the flow between the rails ensure that each injector sees the same fuel pressure. Second, the bore of our rail is machined to 5/8" ID and is designed to accept -8 O-ring boss fittings. This configuration greatly increases the volume of the rail which means that more fuel is available at higher power levels. These fuel rails were real-world tested to 850hp. The fuel rails also feature a port to add an optional fuel damper between each pair of injectors. Fuel dampers absorb fuel oscillations caused by injectors opening and closing. All Subaru’s are equipped with a fuel damper however its location is some distance from the injectors. The IAG rails locate the damper between the injectors to smooth out the fuel flow.

The fuel rails are engineered and manufactured at the IAG facility in Westminster, Maryland. The rails are machined from a solid block of 6061 billet aluminum and feature an anodized finish with the IAG laser marked logo on the top.

Features

• Machined from a solid block of 6061 billet aluminum with an anodized finish and the IAG engraved logo
• Designed to increase the power ceiling on your Subaru's fuel system
• Operate in parallel format, each cylinder bank receives equal fuel
• Bore is machined to 5/8" ID and is designed to accept -8 O-ring boss fittings
• Greatly increases volume, meaning that more fuel is available at higher power levels
• These fuel rails were real world tested to 850hp
• Includes a port to add an optional fuel damper between each pair of injectors
• Dampers absorb fuel oscillations caused by injectors opening and closing
• Engineered and manufactured at the IAG facility in Westminster, Maryland

Please Note

• Not compatible with Injector Dynamics ID2000cc injectors without switching out the billet top hat.
• This kit does not include fuel lines, but they are available separately.

Applications

• 2004 - 2006 Subaru STI
• 2005 - 2007 Subaru Legacy GT
• 2004 - 2005 Subaru Forester XT

Confirmed Injector Fitment

• Injector Dynamics 1050x
• Injector Dynamics 1300x
• Injector Dynamics 1700x

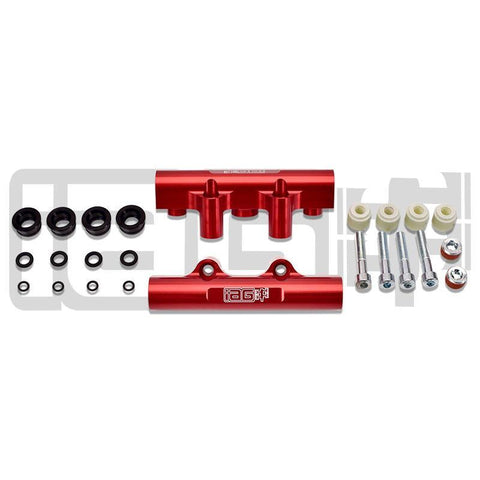

What's In The Box?

• 2 - Billet fuel rails
• 2 - Plugs
• 4 - Side feed to top feed injector conversion bosses
• 4 - Bolts
• 4 - Phenolic spacers
• 4 - Injector O-Rings

References

• Installation Instructions

Warranty

• Manufacturer Standard Warranty
