IAG Performance Competition Series Oil Pan w/ Baffle | Various Subaru Models (IAG-ENG-2203SL)
IAG Performance*SEE DETAILS
Competition Series Oil Pan with Baffle for EJ Series Engines by IAG Performance

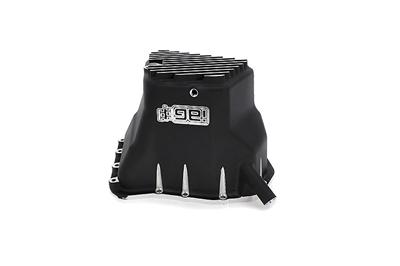

The cast aluminum oil pan was designed with fitment for a larger variety of popular headers in mind, while still increasing oil capacity up to 30% over OEM.

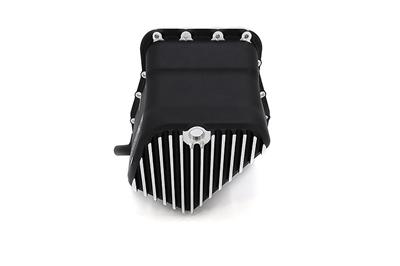

The design incorporates cooling fins to aid in dissipating heat from the oil as air passes over them. The included oil drain plug is integrated into the lower cooling fins at the absolute bottom of the pan to make sure all the waste oil is removed during maintenance changes. The oil drain plug uses an OEM style crush washer. The oil pan is also threaded with a ⅛ inch NPT port to accept many popular oil temperature sensors. A ⅛ inch NPT plug is also included in the event that the sensor port is not used.
The upper flange mounting surface is CNC machined for better hardware fitment. The flange features a sealing O-ring for easier installation and removal. The pan is designed to use the included OEM style Viton dipstick o-rings with a unique chamfer to aid in the installation of the dipstick.

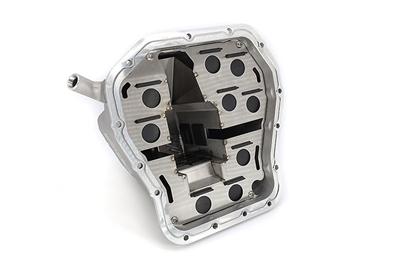

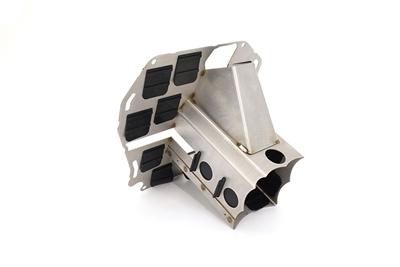

The IAG Competition Series Oil Baffle is designed to limit potential blow-by and prevent oil starvation in your Subaru’s WRX / STI EJ engine during high rpm and high g-force driving. The Competition Series Baffle should be used in vehicles that will see track time, however, it is acceptable to run this baffle on the street as well. The Comp Series baffle is configured with Viton one-way flapper valves which hold oil in the area closest to the pickup. Combining the baffle with the louvers in our optional windage tray, oil is prevented from reentering the upper crankcase area and is directed down into the oil pan to ensure plentiful supply to the oil pickup. IAG’s integrated oil baffle is designed to work with the IAG V2 oil pickup as well as other popular oil pickups.
Features
- 30% More Oil capacity
- Designed to work with the IAG, Killer B and OEM oil pickup.
- ⅛ inch NPT port
Applications
- 2003 - 2014 Subaru WRX
- 2004 - 2021 Subaru STI
- 2005 - 2009 Subaru Legecy GT
- 2004 - 2013 Subaru Forester XT
What's In The Box?
- 1 - IAG Cast Aluminum Oil Pan with Machined Flanges & Cooling Fins
- 1 - IAG Competition Series Oil Pan Baffle
- 1 - Oil Pan Mounting Hardware Pack
- 1 - Oil Baffle Hardware Pack
- 1 - Oil Pickup Spacer Kit PN#IAG-ENG-2081SP
- All necessary hardware required for install
References
Warranty
- IAG Performance Limited Warranty
