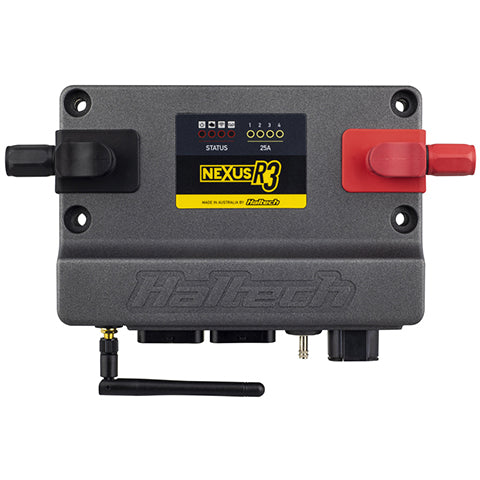

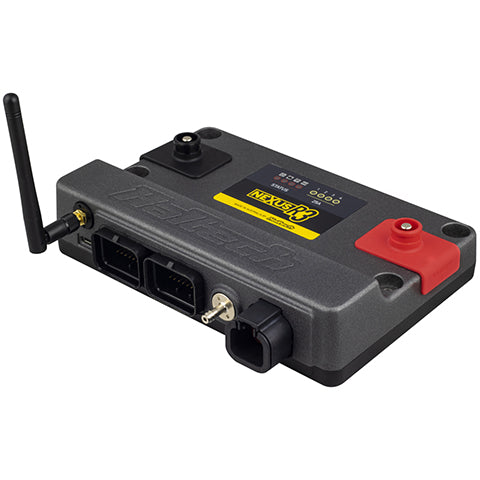

Nexus R3 VCU by Haltech

Nexus R3 combines the functionality of a power distribution module, a data logger, a wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).

Features

  • 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
  • 8 x peak/hold injector drivers (can be used as low side drive outputs)
  • 8 x low current ignition outputs (can be used as low side drive outputs)
  • 6 x low side drive outputs, PWM capable (DPOs)
  • 6 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
  • 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
  • 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
  • 1 x on-board wideband controller, supporting NTK and LSU4.9
  • 1 x on-board 4 bar MAP sensor
  • 2 x CAN ports with switchable termination

Benefits

  • Offers an excellent solution for your engine management needs

Applications

  • Universal

What's In The Box?

  • 1 - Nexus R3 VCU

Warranty

  • Haltech's Standard Limited Warranty
