Haltech Elite 750 With Basic Universal Wire-in Harness Kit (HT-150602)

Elite 750 Basic Universal Wire-In Harness ECU Kit by Haltech

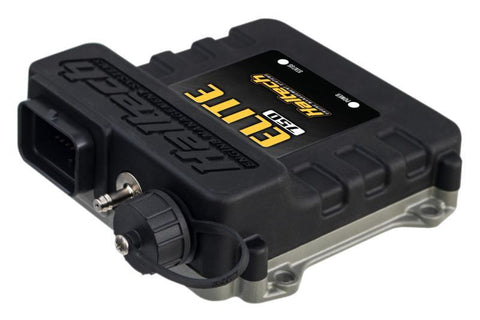

ECU OVERVIEW The Elite 750 is an entry-level ECU offering many features available on the more advanced Elite 1500/2500 at an affordable price. Featuring a robust, environmentally sealed, waterproof case, 6 fuel and 6 ignition channels, on-board data logging and flex fuel tuning the Elite 750 is a powerful, compact ECU. Alongside the Elite 750 ECU is the Elite Software Programmer (ESP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to tuners and performance enthusiasts worldwide.

The Universal Wire-in Harness has a set of ECU connectors at one end and unterminated wires at the other. All the wires at the unterminated end are colour coded and clearly labelled. Connect your Haltech ECU to the terminated end and follow your wiring diagram for all the engine connections. Load your base map and you're ready to go!

Features

• Low Impedance Injector control with Programmable Injector Peak and Hold
• Flex Fuel Function (Direct sensor input) - Tune your engines boost, fuel and ignition by ethanol content
• Flexible tuning setup for Petrol (Gasoline), Methanol and Ethanol allows you to simply select your fuel type E85 flex-fuel ready - direct connection to sensor
• Closed Loop O2 Control - for precise tuning (With optional external CAN O2 Wideband Controller Kit). Long-Term Learning
• Closed Loop Idle Speed Control with learning for consistent idle stability. Requires 1 or 2 user-defined outputs (BAC type)
• Long-term learning (Autotune) on fuel, cam & idle control maps (up to 3D)
• Laptop data logging -Data log all available channels directly to your laptops hard drive for both tuning and diagnostics
• CAN Bus communication for Haltech Dashes and expansion devices or OBDII (view live engine data & set and clear diagnostic trouble codes)
• 2 Injection Stages for use with Rotary Engines
• Variable cam control - Independently control a single camshaft - Requires a minimum of 1 user-defined input & output

Benefits

• Waterproof case (IP67) (with USB cover fitted)
• Up to 45 channels of Input & Output (I/O) expansion (via CAN)
• Variable Cam Control supported for engines with a single cam sensor only, located on the variable cam. VVT Engines Supported - Toyota 1JZ/2JZ VVT, Toyota 1ZZ and 2ZZ, Mazda MX5 NB with VVT, Mazda / Ford Duratec, Suzuki M Series

Please Note: Single connector ECU kit ideal for basic 6 cylinder or 2 rotor engines, basic EFI conversions, single VVTi engines. Does not include fuse and relay box.

Applications

• Universal

What's In The Box?

• 1 - Elite 750 ECU
• 1 - Basic Universal Wire-In Harness
• 1 - Waterproof USB cap
• 1 - USB programming cable and software CD

Warranty

• Haltech Limited Warranty
