GrimmSpeed 3-Bolt Up-Pipe | 2002-2014 Subaru WRX & 2004-2021 Subaru STI (007064/5)

3-Bolt Up-Pipe for 2002-2014 Subaru WRX & 2004-2021 Subaru STI GrimmSpeed

GrimmSpeed designed this up pipe using their in-house FARO Arm along with the latest and greatest Solidworks CAD Software. This assures that they can offer you the most precise and best fitting up pipe for your [aftermarket] 3-bolt header on the market. Aftermarket headers are often inconsistent so we used our reverse engineering hardware/software to scan the leading 3-bolt headers to determine the range of best fitments for this aftermarket up pipe. This allows GrimmSpeed to be very confident that your flanges will be leak free and the up pipe will fit perfectly, every time.

Their up pipe is made with the best local raw materials available. The flex joint is 321 Stainless Steel w/ an Interlocking Liner and the tubing is a heavy duty 14 Gauge 304 Stainless Steel (competitors use thinner 16 GA) that has been precisely CNC Mandrel Bent; the flanges are made out of 1/2" 304 Stainless Steel and are put through a tumbling process to smooth out the edges. The pipe is hand-welded on the inside of the flange, in addition to the outside, allowing for added strength to the finished product and a nice mating surface with optimal flow through the pipe. All fabrication is completed by GrimmSpeed's team of Certified Welders/Fabricators which ensures that each and every up pipe that comes out of their facility will handle anything you throw at it.

Features

• Flex Joint - 321 Stainless Steel "Tuned-Bellow"
• Tubing Thickness- 14 Gauge Piping Thickness - 33% thicker than most competitors

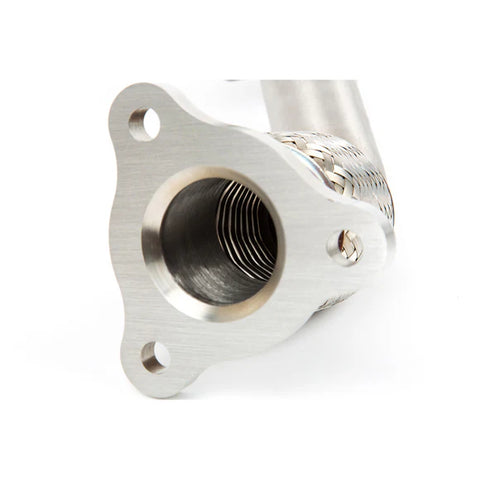

• Cut-Back flange allows much smoother connection. Piping is ported flush with flange so there is no step into the pipe.

Benefits

• Reduce turbo lag
• Optional ceramic coating

Applications

• 2004-2021 Subaru STI
• 2002-2014 Subaru WRX
• 2004-2013 Subaru Forester XT
• 2007-2008 Subaru Baja XT
• 2007-2009 Subaru Legacy GT
• 2007-2009 Subaru Outback XT

What's In The Box?

• 1 - 3-Bolt Up-Pipe
• Required Gaskets

Warranty

• GrimmSpeed Limited Manufacturers Warranty
