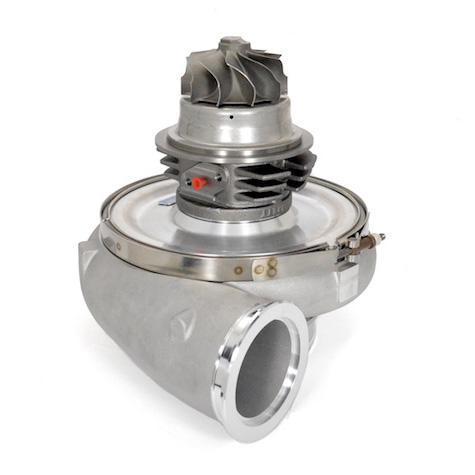

Garrett GTX5009R Gen II 875-1700 HP Super Core

Garrett Gen 2 GTX5009R Super Core - 875-1700 HP - No Turbine Housing

The GTX5009R is the newest addition to the Garrett GTX Gen II lineup. Forged fully-machined Gen II compressor wheel aerodynamics offers racing enthusiasts a 9%-15% increase in flow and are compatible with 2.0L - 10.0L platforms.

Features

• Gen 2 Compressor Wheel Aerodynamics
• 9%-15% Increased Flow
• 76mm and 80mm Turbocharger Compressor Options
• Larger 0.88 A/R Compressor Housing Volute
• 109mm Comp Exducer ( + 1mm) with 39% Lower Inertia
• Compatible With GT50/GTX50 Turbine Housings

Specifications

• Compressor Wheel Inducer: 76mm or 80mm
• Compressor Wheel Exducer: 109mm
• Compressor Wheel Trim: 49 or 54
• Compressor Housing A/R: 0.88
• Turbine Wheel Inducer: 99mm
• Turbine Wheel Exducer: 91mm
• Turbine Wheel Trim: 84

Please Note: This is a Gen 2 GTX5009R Super Core. It is a turbocharger without the turbine housing.

Applications

• Universal

What's In The Box?

• 1 - GTX5009R Gen 2 Super Core

Warranty

• Manufacturer Standard Warranty
