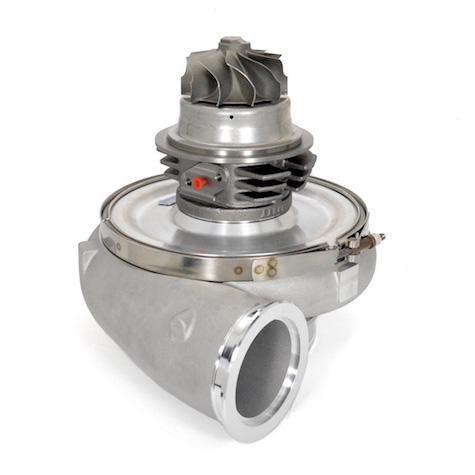

Garrett GTX4720R Gen II 1025-1950 HP Super Core

Garrett Gen 2 GTX4720R Super Core - 1025-1950 HP - No Turbine Housing

The GTX4720R is the newest addition to the Garrett GTX Gen II lineup. Forged fully-machined Gen II compressor wheel aerodynamics offers racing enthusiasts a 9%-15% increase in flow and are compatible with 2.0L - 10.0L platforms.

Features

• Gen 2 Compressor Wheel Aerodynamics
• 9%-15% Increased Flow
• 76mm, 80mm and 88mm Turbocharger Compressor Options
• Larger 0.88 A/R Compressor Housing Volute
• 120mm Comp Exducer ( +2mm) with 30% Lower Inertia
• Compatible With GT47/GTX47 Turbine Housings

Specifications

• Compressor Wheel Inducer: 76mm, 80mm or 88mm
• Compressor Wheel Exducer: 120mm
• Compressor Wheel Trim: 41, 45 or 54
• Compressor Housing A/R: 0.88
• Turbine Wheel Inducer: 93mm
• Turbine Wheel Exducer: 84mm
• Turbine Wheel Trim: 82

Please Note: This is a Gen 2 GTX4720R Super Core. It is a turbocharger without the turbine housing.

Applications

• Universal

What's In The Box?

• 1 - GTX4720R Gen 2 Super Core

Warranty

• Manufacturer Standard Warranty
