Garrett GTX4088R Supercore : 460-850 HP (825614-5005S)
Garrett*SEE DETAILS

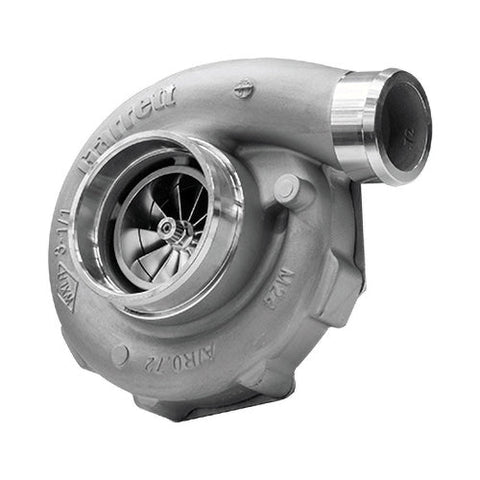

Garrett GTX4088R Supercore
Garrett GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.
Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
Please Note: Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
Features
- For 2.0L - 6.0L Displacement Engines Making 460 - 850 HP
- Original GTX Series Comp Wheel Aerodynamics
- Sold As A Supercore (Turbine Kits Sold Separately)
- Dual Ball Bearing Configuration
- Water Cooled CHRA
Specifications
- Compressor Wheel Exducer: 88mm
- Compressor Wheel Inducer: 65mm
- Compressor Wheel Trim: 54
- Compressor Wheel A/R: 0.72 A/R
- Turbine Wheel Exducer: 68mm
- Turbine Wheel Inducer: 77mm
- Turbine Wheel Trim: 78
Applications
- Designed for 2.0L - 6.0L Displacement Engines Making 460 - 850 HP
What's In The Box?
- 1 - Garrett GTX4088R Supercore
References
Warranty
- Garrett Turbo Technologies warrants to the original purchaser of its Turbocharger Products that such Turbocharger Products will, for a period of 1 year from date of shipment and subject to the Limitations on Warranty, be free from defects in materials and workmanship.
