Garrett GT2860RS Turbocharger : 250-360 HP (836026-5013S / 836026-5014S)

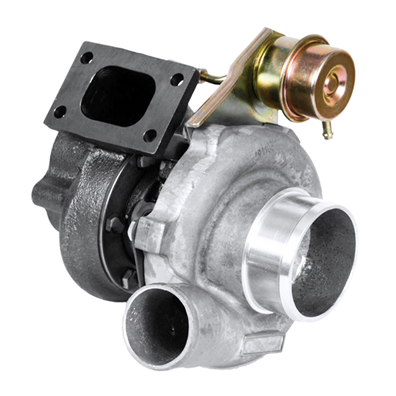

Garrett GT2860RS Turbocharger

Garrett® GT turbos pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, with a range of sizes. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity.

Features

• For 1.8L - 3.0L Displacement Engines Making 250 - 360 HP
• Original GT Series Aerodynamics
• Internally Wastegated Turbine Housing
• Sold As A Complete Turbo (Includes Turbine Kit & Actuator)
• Ball Bearing Configuration
• Water Cooled CHRA

Specifications

• Compressor Wheel Exducer: 60mm
• Compressor Wheel Inducer: 47mm
• Compressor Wheel A/R: 0.60 A/R
• Turbine Wheel Exducer: 47mm
• Turbine Wheel Inducer: 54mm
• Turbine Wheel Trim: 76
• Turbine Wheel A/R: Available in 0.86 or 0.64 A/R

Applications

• Designed for 1.8L - 3.0L Displacement Engines Making 250 - 360 HP

What's In The Box?

• 1 - Garrett GT2860RS Turbocharger

References

• Compressor Map
• Exhaust Flow Chart
• Flange Diagram
• Speed Sensor Kit Installation Instructions

Warranty

• Garrett Turbo Technologies warrants to the original purchaser of its Turbocharger Products that such Turbocharger Products will, for a period of 1 year from date of shipment and subject to the Limitations on Warranty, be free from defects in materials and workmanship.
