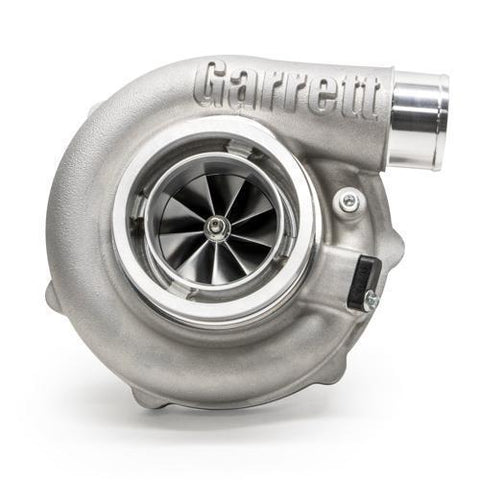

Garrett G Series G35-900 Super Core - 550-900 HP - Standard Rotation - No Turbine Housing

G Series turbochargers feature the latest innovations in turbocharger technology. Advanced compressor and turbine aero offer enthusiasts a wide range of performance boosting solutions for 2.0L - 8.0L engine platforms. Standard and reverse rotation options are offered with a variety of turbine housing configurations making it easy to select the right turbocharger for your application.

Garrett® G Series Turbine Wheel: By incorporating the latest and advanced ULTRA HIGH FLOW aerodynamic designs within the Garrett G Series Turbine Wheel, G Series models offer previously unimagineable power levels by frame size and improvements in spool! Made from Mar-M super alloy, the G Series Turbine Wheel withstands up-to 1050 degrees Celsius; +200 degrees Celsius over inconel turbine wheels.

Garrett® G Series Compressor Wheel: Forged fully-machined compressor wheel and new aerodynamics design increases maximum horsepower output, up to +30%. The G-Series aero design not only increases peak flow but higher power levels within a large operating RPM range.

Features

  • Evolutionary Ultra High Flow G-Series Turbine Wheel
  • Advanced aerodynamics G Series Compressor Wheel
  • Fully machined speed sensor and pressure ports
  • One piece center housing and backplate for increased durability
  • 4 water jacket ports for customizable installation
  • Ball Bearing CHRA Rotating Assembly
  • Standard Rotation (spins clockwise)
  • Mar-M turbine wheel material rated up to 1050° C | 1922° F
  • The Results: +20% More Horsepower & Quicker Spool!

Specifications

  • Compressor Wheel Inducer: 62mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84

Please Note: This is a G35-900 Super Core. It is a turbocharger without the turbine housing.

Applications

  • 2.5L - 5.5L Displacement Engines

What's In The Box?

  • 1 - G35-900 Standard Rotation Super Core

Warranty

  • Manufacturer Standard Warranty
