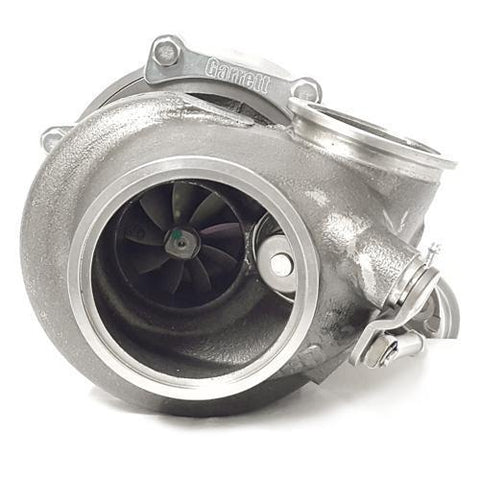

Garrett G Series G25-550 Reverse Rotation 300-550 HP Turbo w/ 1.0 Bar Actuator

Garrett G Series G25-550 Turbocharger - 300-550 HP - Reverse Rotation - 1.0 Bar Actuator

G Series turbochargers feature the latest innovations in turbocharger technology. Advanced compressor and turbine aero offer enthusiasts a wide range of performance boosting solutions for 2.0L - 8.0L engine platforms. Standard and reverse rotation options are offered with a variety of turbine housing configurations making it easy to select the right turbocharger for your application.

Garrett® G Series Turbine Wheel: By incorporating the latest and advanced ULTRA HIGH FLOW aerodynamic designs within the Garrett G Series Turbine Wheel, G Series models offer previously unimagineable power levels by frame size and improvements in spool! Made from Mar-M super alloy, the G Series Turbine Wheel withstands up-to 1050 degrees Celsius; +200 degrees Celsius over inconel turbine wheels.

Garrett® G Series Compressor Wheel: Forged fully-machined compressor wheel and new aerodynamics design increases maximum horsepower output, up to +30%. The G-Series aero design not only increases peak flow but higher power levels within a large operating RPM range.

Garrett® G Series Turbine Housings: Standard Garrett Stainless Steel material. V-band CHRA to Turbine Housing interface for a full 360 degree rotation.

Features

• Evolutionary Ultra High Flow G-Series Turbine Wheel
• Advanced aerodynamics G Series Compressor Wheel
• Fully machined speed sensor and pressure ports
• Oil restrictor and water fittings included with purchase
• Ball Bearing CHRA Rotating Assembly
• Reverse Rotation (spins counter-clockwise)
• Stainless steel turbine housings for temperatures up to 1050° C | 1922° F
• The Results: Horsepower & Quicker Spool!

Specifications

• Compressor Wheel Inducer: 48mm
• Compressor Wheel Exducer: 60mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.70
• Turbine Wheel Inducer: 54mm
• Turbine Wheel Exducer: 49mm
• Turbine Wheel Trim: 84
• Turbine Housing Inlet: 3 Inch O.D. V-Band
• Turbine Housing Outlet: 3.55 inch (90mm) O.D. V-Band

Applications

• 1.4L - 3.0L Displacement Engines

What's In The Box?

• 1 - Garrett G25-550 Reverse Rotation Turbocharger w/ 1.0 Bar Actuator
• 1 - Oil Restrictor Fitting to -4AN
• 2 - Coolant Fittings to -6AN

Warranty

• Manufacturer Standard Warranty
