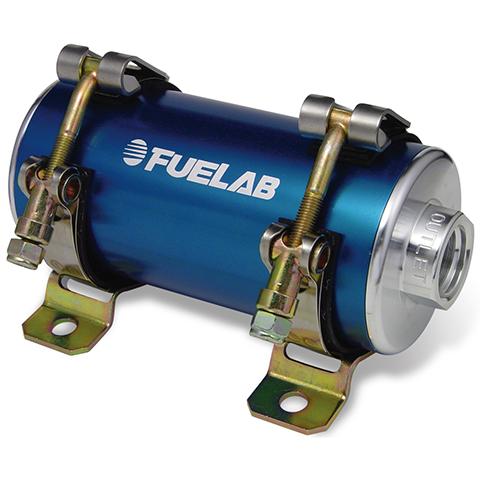

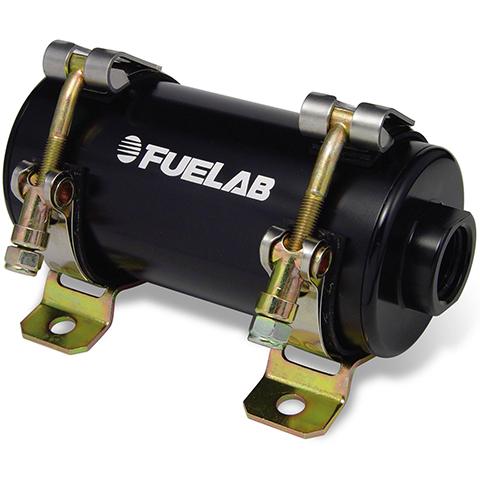

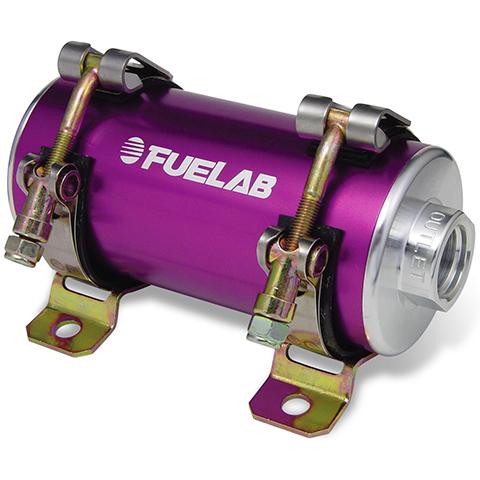

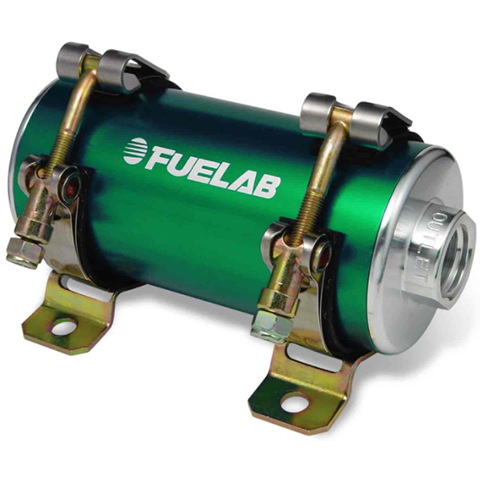

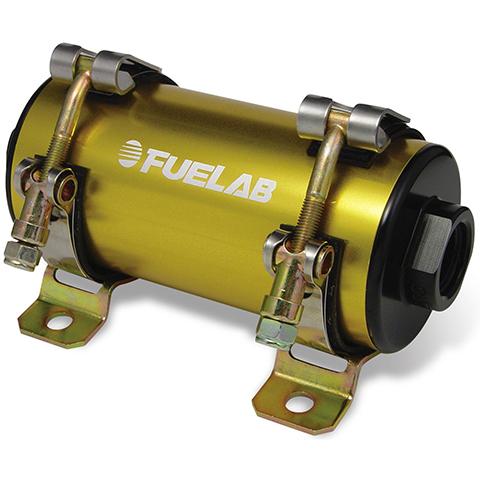

Fuelab Prodigy High Power EFI In-Line Fuel Pump (2402)

Prodigy High Power EFI In-Line Fuel Pump by Fuelab

High Power EFI In-Line Fuel Pump 190 GPH @ 45 PSI - RATED UP TO 1800HP The top of the line... supports very high horsepower! FUELAB™ has taken Fuel Delivery to the next level... Digital. Prodigy Fuel Pumps are the automotive aftermarket's first and only speed controllable DC brushless driven fuel pump. Fuelab's award-winning, patent pending designs offer improved durability, substantially higher efficiency, and lower current draw. With digital fuel delivery you get unheard of electro-mechanical efficiencies in a package half the size of competing pumps. Five models are available ranging in performance levels; with flow rates up to 200GPH and operating pressures up to 125PSI.

Features

• Only in line pump compatible with gasoline, diesel, methanol, and ethanol
• High efficiency sling vane positive displacement pump
• Special housing shape for extremely quite operation and steady pressure
• Carbon 9-vane construction with pressure balanced rotor for high reliability
• Lightweight super-efficient dc brushless motor reduces current draw
• Low mass rotor for high speed reaction to changes in speed and flow
• Powerful high flux density Neodymium rare earth magnets
• No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
• Wet motor design, no dynamic shaft seals that can wear
• Internal speed controller for variable flow operation
• Accepts 0-5 Volt signal for speed control
• 12 to 16 volt vehicle electrical system compatibility
• Continuous duty–motor speed can be adjusted for street or strip fuel demand
• 3 lbs
• Overall length 6.9", diameter 2.63"
• Billet Aluminum Construction with anodize per MIL-A-8625, Type II
• High quality mounting brackets included
• Long-life, multi-fuel compatible Fluorosilicone static seals
• Accepts standard or port style –10AN fittings

Benefits

• Compact, lightweight design
• No expensive voltage reduction/pulse width modulation controllers required
• Significantly Increased Fuel Flow

Applications

• Universal

What's In The Box?

• 1 - Inline Fuel Pump

Warranty

• Fuelab's Limited Manufacturer's Warranty
