Fragola Series 6000 PTFE Lined -10AN Stainless Hoses (603010)

Series 6000 PTFE Lined Stainless Steel Hoses by Fragola

The properties of P.T.F.E. make it a natural for all highly corrosive applications like automotive brake fluid. P.T.F.E. also works well for hot oil and power steering fluid. The hose will take high pressure and cycle over and over without failure. This hose also handles nitrous oxide with ease. P.T.F.E. powder is extruded into a smooth bore tube product. The tube is then fed into a machine that weaves stainless wire into the familiar braided pattern. The hose is inspected 100% and any flawed sections are discarded.

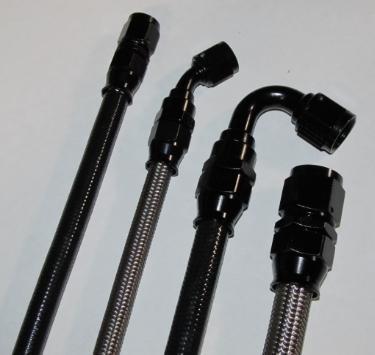

Stainless braided hose can be abrasive to anything it comes in contact with. For that reason, Fragola Performance Systems offers it's hose with optional plastic covers. The hose will not scratch aluminum panels or remove paint.

Features

• Accepts -10AN Size Hose Fittings
• Braided Stainless Steel Construction
• Lined With Corrosion-Resistant PTFE
• Optional Cover to Protect Against Abrasion
• Available in 3ft, 6ft, 10ft, 15ft, and 20ft Rolls

PLEASE NOTE

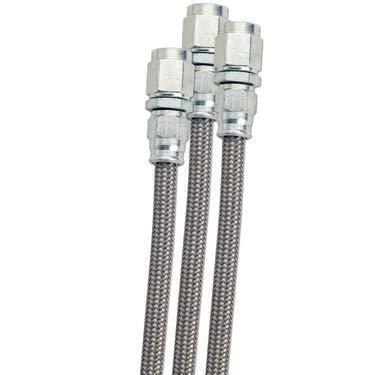

Images provided are generic, and do not necessarily represent the exact product you will receive

Applications

• Universal

Specifications

• AN Size: -10AN
• Nominal ID: .50in
• Working Pressure: 1500psi
• Burst Pressure: 6000psi
• Min Bend Radius: 6.50in

What's In The Box?

• 1 - Roll of Series 6000 10AN Hose

Warranty

Manufacturer's Warranty
