Forced Performance Red 76HTZ JB Turbo | 2006 Mitsubishi Evo 9
Forced Performance*SEE DETAILS

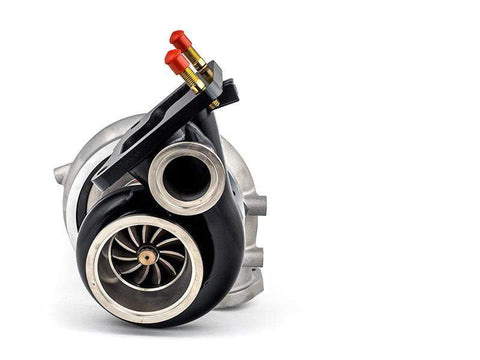

Mitsubishi Evolution 9 Red 76HTZ Turbo by Forced Performance
The FP Red is the pinnacle of street and strip turbochargers. It is small enough that it doesn’t take forever to build boost but large enough to make more than 525WHP.
All EVO turbos now come standard with our new cast stainless turbine housing. This turbine housing has been designed to maximize flow while not sacrificing spool characteristics. It has a 3" V-Band outlet and a TiAL MV-S waste gate flange machined directly onto the housing.
Features
- Compressor wheel - 76HTZ
- Flow rating - 61LB per minute
- CW Measurements - 54.8MM Inducer / 76MM Exducer
- TW Measurements - 67.3MM Inducer / 58.8MM Exducer
- Compressor Housing - 84MM Flow Advancement Port Cover
- Turbine Housing - FP Stainless EVO 9 Turbine Housing
- CHRA - FP Journal Bearing
- Oil Line - Not Included - Required for proper lubrication
Please Note: This turbine housing was designed for race applications where the turbocharger would be operating above 20psi. Attempting to operate below 20PSI can result in boost creep in some applications.
California Residents - Prop 65 Warning.
Applications
- 2006 Mitsubishi Evolution 9
What's In The Box?
- 1 - FP Red 76HTZ Turbo
Warranty
- Manufacturer Standard Warranty
Customer Reviews
Great turbo for the 500hp range

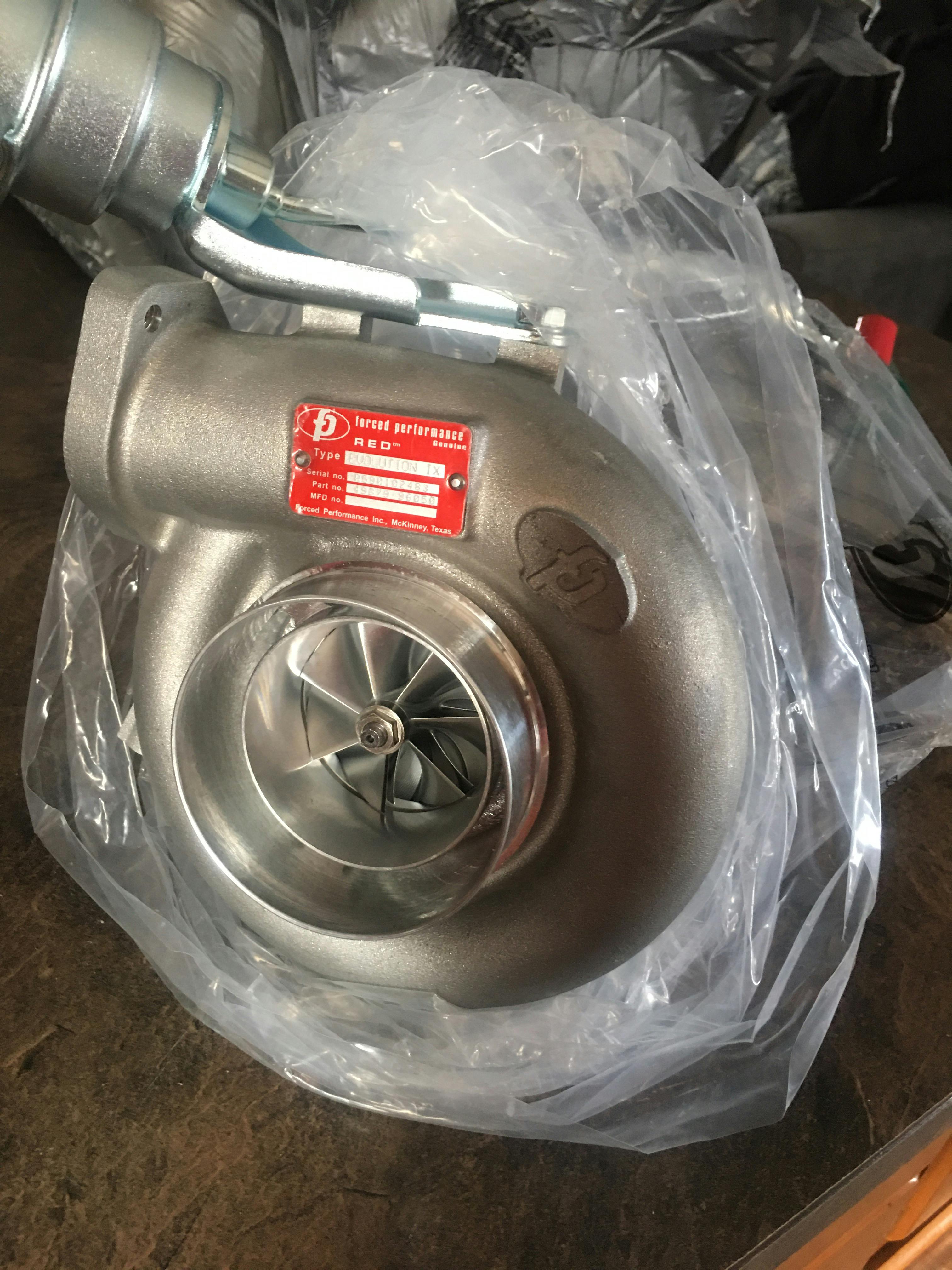

I ordered this turbo over winter and it came super quick and packaged great. Put it on my 8 and have a blast everytime I drive it.
Best price found, and even though there was a slight delay in shipping due to the pandemic situation, i was kept updated. Great experience!
Build time took about 3 weeks and can vary but was very pleased when the package arrived. It was very well packaged and well worth the money!
Ordered from Map performance and i don't regret it one bit. Forced Performance requested a 2-3 week build time for these turbos. I ordered this for my Evo 8 and Map had it here within a week!! im stoked to get this installed, shoutout to these guys for the quality service and blistering fast delivery!
