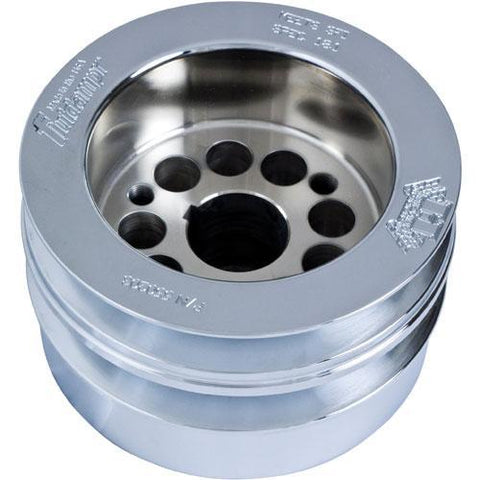

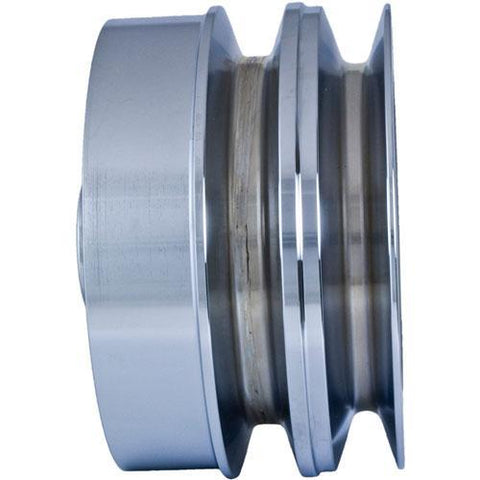

Fluidampr Chrome Performance Damper | Ford Flathead V8 w/ Wide Belt Pulley (550203)
Fluidampr*SEE DETAILS
Harmonic Balancer For Ford Flathead V8 Engines w/ Wide Belt Pulley by Fluidampr
You can't feel them or hear them, but harmonic vibrations are at work inside EVERY internal combustion engine. Similar to glass-shattering forces created by a high pitched note, harmonic vibrations cause metal fatigue and can cause significant power loss because crankshaft harmonics are transmitted to the camshaft and valvetrain. Control this power-robbing force with a Fluidampr Harmonic Damper with race-proven vibration damping technology. A high viscosity silicone fluid surrounds a nylon-coated inertia ring inside a laser welded housing. All dampers are coated with black zinc chromate for increased corrosion resistance. Timing marks - every two degrees from 50° BTDC to 10° ATDC with additional marks at 90, 180 and 270. Meets SFI 18.1 specs.
Features
- Bore Diameter Min/Max: 1.310" - 1.311
- Degree Marking Range: 50° BTDC to 10° ATDC
- Degree Markings: Yes
- Engine Balance: Internal
- Finish: Chrome
- Keyway: Single (1/4")
- Length: 3.689"
- Material: Steel
- Mounting Hardware Included: No
- Outside Diameter: 5-5/8"
- Safety Rating: SFI 18.1
- Weight / Rotating Weight: 9.5 lbs / 7.1 lbs
Applications
- Ford Flathead V8 w/ Wide Belt Pulley
What's In The Box?
- 1 - Harmonic Balancer
References
Warranty
- Manufacturer Standard Warranty
