FactionFab V2 FR-Spec Coilovers | 2015-2021 Subaru WRX/STI (1.10277.2)

2015-2021 Subaru WRX/STI FR-Spec Coilovers by FactionFab

These V2 FR-Specs are designed from the ground up for racing. They have higher spring rates and valving to suit performance track driving at no cost. The FR-Spec line features a solid aluminum, pillow-ball camber plate that significantly reduces suspension deflection while giving full alignment control. They have a mild drop range designed to maximize shock travel and fluid capacity for consistent, long lasting performance.

Features

• More aggressive shock valve
• Stiffer spring rates
• Pillowball aluminum front top-hats
• 32-click adjustable monotube shock with internal piston and damping stack tuned for aggressive driving
• Japanese steel tube construction using SAE1010 STKM13c
• Monotube shock design with high-performance mono-tube shock construction allowing for better rider control, fluid life, and thermal fluid stability
• Synthetic high-performance oil
• Independent ride-height adjustability separately from spring pre-load allowing the customer to set the ride height without having to worry about shock travel
• Top hats included allowing this suspension system to be a direct replacement for your factory suspension setup

Benefits

• High Temperature/ higher stability shock fluid to better suit circuit driving
• Adjustable Aluminum upper pillow ball mounts to reduce suspension deflection under aggressive driving conditions while allowing for fine alignment adjustments
• Forged 6061 anodized adjustable collars and spring seats for easy adjustment and prolonged cycle life
• Robotic welded and electroplated lower shock mounts for consistent fit and finish
• Dust boots and bump stops for shock protection and longevity
• Plastic lower spring seat isolator to aid ride height adjustment and reduce unwanted audible noise

Please Note: Designed specifically for performance driving, the FR-Spec coilovers feature an increased spring rate and increased damping coefficient in the shocks over the F-Spec to provide ultimate handling and vehicle control under aggressive driving conditions.

Applications

• 2015 - 2021 Subaru WRX
• 2015 - 2021 Subaru STI

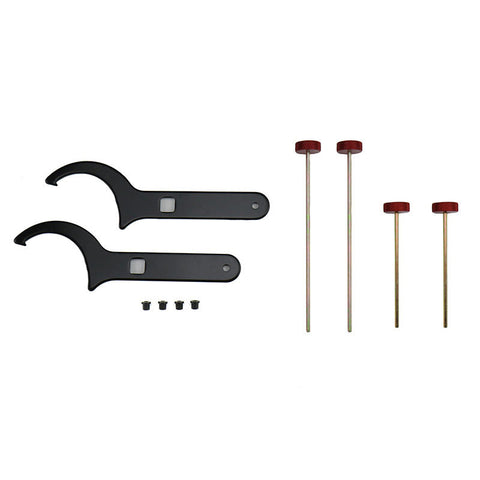

What's In The Box?

• 2 - Front Coilovers
• 2 - Rear Coilovers
• 2 - Wrenches
• 4 - Adjuster Knobs
• 2 - Adjuster Retainer Grommets

References

• Installation Instructions

Warranty

• Manufacturer Standard Warranty

Supercession(s): 1.10177.2
