ECUMaster PMU16 Power Management Unit (ECUPMU16)

PMU16 Power Management Unit by ECUMaster

Race cars now feature advanced engine management systems, antilock brake systems, paddle shifters, dataloggers, radios, electric pumps, fans, and lights. All components need to be controlled at the correct moment, and all components require circuit protection to prevent damage or fire. Traditionally, fuses and relays served all of those purposes, but they have many disadvantages like complicated wiring looms, sensitivity to vibration/temperature, and difficult diagnostics.

All of these problems can be solved by using intelligent power management units (PMUs). Our newly developed PMU unit is at the forefront of technology. It provides 16 high current outputs (and use of multiple units if more outputs are required).

One of the main advantages of the PMU is continuous current sensing and self-resetting functionality if current exceeds the defined level. All output state, voltage and current information can be logged and transmitted via CAN bus to dash displays to inform drivers of potential problems. An additional advantage of the PMU system is the ability to define logic for controlling outputs. This is done with data from analogue input channels or CAN bus data, and math operations can be defined for each channel.

The PMU is also equipped with LED indicators to show the status of each output. With use of CAN bus keypads or steering wheel switches, all wiring is vastly simplified and lightened. Two unique features are the inbuilt accelerometer and gyro for logging and “inertia switch” in case of accident.

PMU is assembled according to IPC-S-815A standards to ensure product reliability. The device is manufactured on an automated assembly line with optical inspection, and automated testing (including burn-in). The PCB material and design, special surface coating and IP65 enclosure ensure reliability even in the harshest environments. Carefully selected components allow for continuous and reliable operation across a very wide temperature range (AECQ-100 GRADE 1 (-40 to 125˚C).

Features

• Temperature range: AECQ100 GRADE1 (-40 to 125˚C)
• CPU: 32 bits automotive
• 90MIPS Reverse polarity protection
• Internal Operating voltage 6-22V
• CNC machined aluminum material
• Connectors: 1 x 39 Automotive connector, 1 x M6 stud for battery connection
• Size and Weight: 131mm x 112mm x 32.5mm, 345g
• PC Communication: CAN (PCAN, ECUMASTER USBCAN)
• Outputs: High current outputs 10 x 25A(cont.), 6 x 15A(cont.) with Overcurrent and overheating protection. Outputs may be paired to increase continuous current capability.
• 5V Monitored 5V, 500mA output for powering external sensors
• Total current output: 150A continuous
• CAN Keypads: 2 x Ecumaster keypads (4, 8, 12 keys)
• Inputs: Analog inputs 16 inputs, 10 Bit resolution, 0-5V (protected), with software selectable 10K Ohm pullup and pulldowns
• Output state indication: 16 bicolor LEDs Accelerometer/Gyroscope 3D accelerometer with 3D gyroscope for logging and crash detection

Applications

• Universal

What's In The Box?

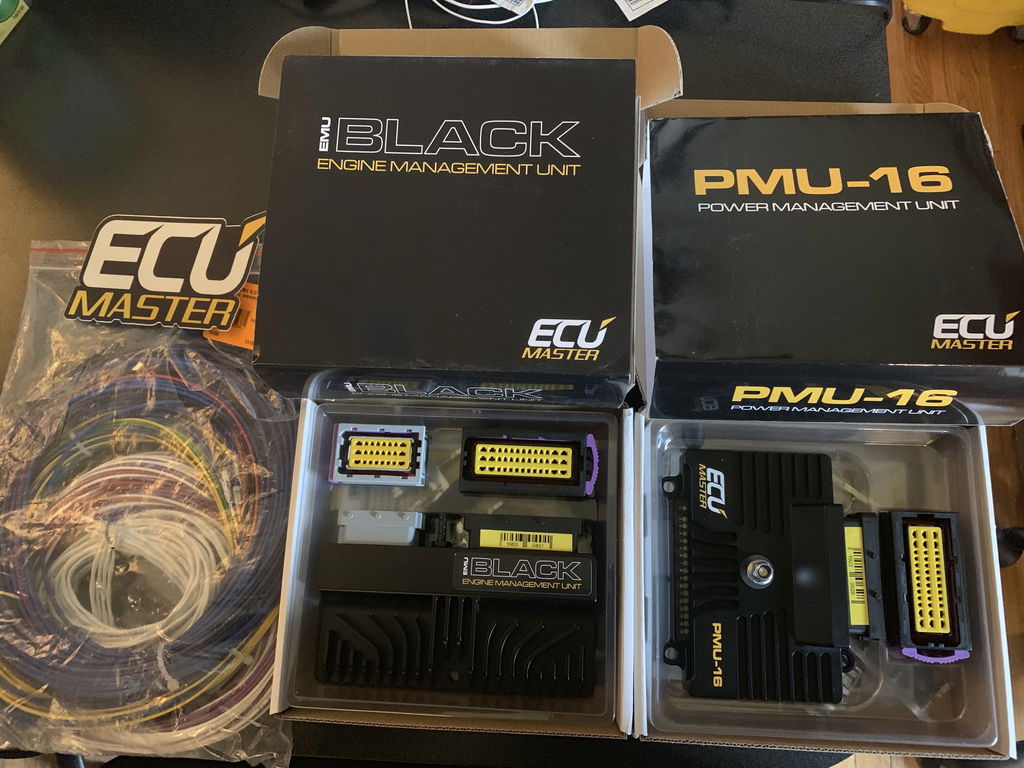

• 1 - PMU16 Power Management Unit

Warranty

• ECUMaster Standard Warranty
