EMU Black by ECUMaster
EMU BLACK is a universal engine control computer that manages the operation of spark-ignition engines, and is designed to work with the most advanced and complex currently available engines.
It is the successor to our proven system, the ECUMaster EMU. The main applications for the EMU Black are modified race cars, passenger cars, motorcycles, boats, and stationary engine applications.
EMU Black features sophisticated strategies for drive-by-wire throttles, providing a wide range of control with advanced algorithm reliability (fault / error) and failsafe provisions. System capabilities will increase over time because of the ease of upgrading (free) firmware (eg. New strategies, trigger patterns, CAN-Bus data streams).
Features
- Operating temperature range: AECQ100 Grade2 (-40 to 105C)
- Reverse polarity/short circuit protection: YES (built-in)
- Operating voltage: 6-22V (resistance to transients according to ISO 7637)
- Housing: IP 65, CNC aluminum, designed by ECUMaster
- Dimensions (mm) Weight (g): 150x72x31, 390
- Electrical connectors: 1x24, 1x39 FCI specifications Automotive
- PC Communication: USB (via the Windows software suite), serial, CAN-Bus
PC Requirements
- Windows 2000 or Newer
- Minimum Screen Resolution of 1024x768
- CPU Clock of At Least 600MHz
- USB Port
Applications
- Universal
Inputs
- 9 analog inputs with a resolution of 10Bits, 0-5V
- 2 EGT input (type K thermocouple)
- 2 knock sensor inputs
- Lambda probe: Bosch LSU 4.2, LSU 4.9 or Narrowband
- 3 Trigger Inputs (crankshaft, 2x camshafts)
- 1 vehicle speed sensor (Hall / VR)
- 1 dedicated Flex Fuel Sensor input
- 3 switched inputs (switchable to ground)
Outputs
- 8 Injectors (5A protected, low side)
- 6 Ignition (15A rated, protected, for passive or active coils, up to 12 cylinders in wasted spark)
- 6 Auxiliary Outputs (5A protected, low side)
- 'Full bridge' rated to 7 Amps, can be used as separate outputs or 2 x H-Bridges
- WBO Heater: Rated to 5A (low side)
What's In The Box?
- 1 - ECUMaster EMU Black
- 1 - USB cable
- Connectors & Terminals
- Instructions & Manual
Warranty
- ECUMaster Standard Warranty
Customer Reviews

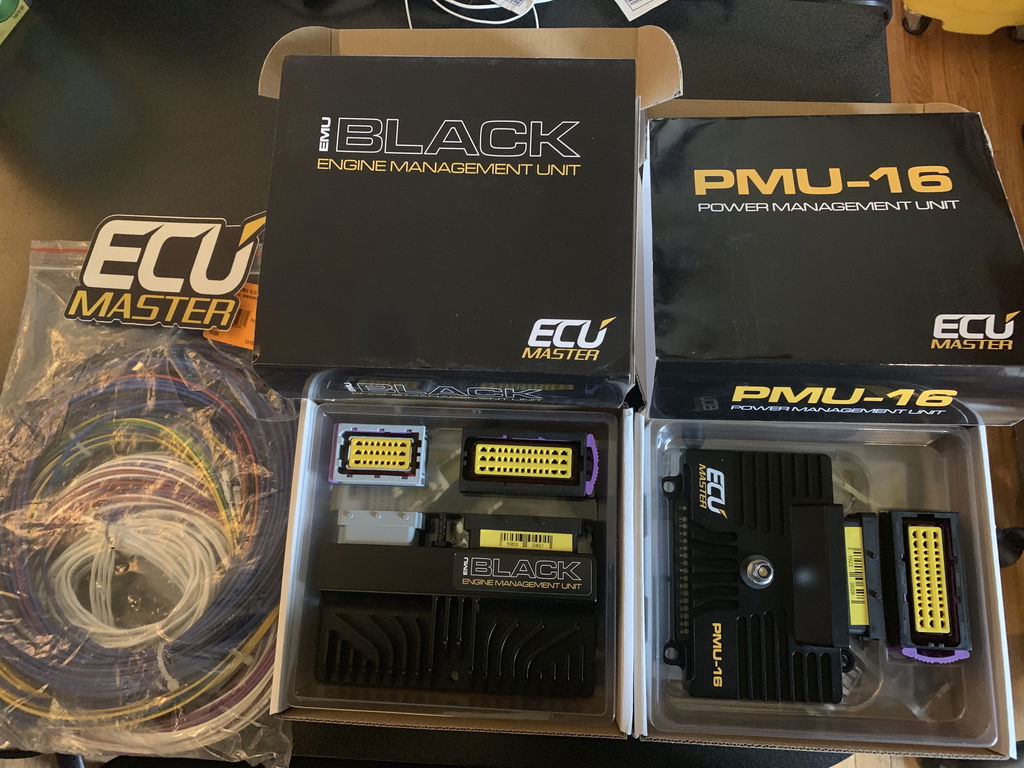

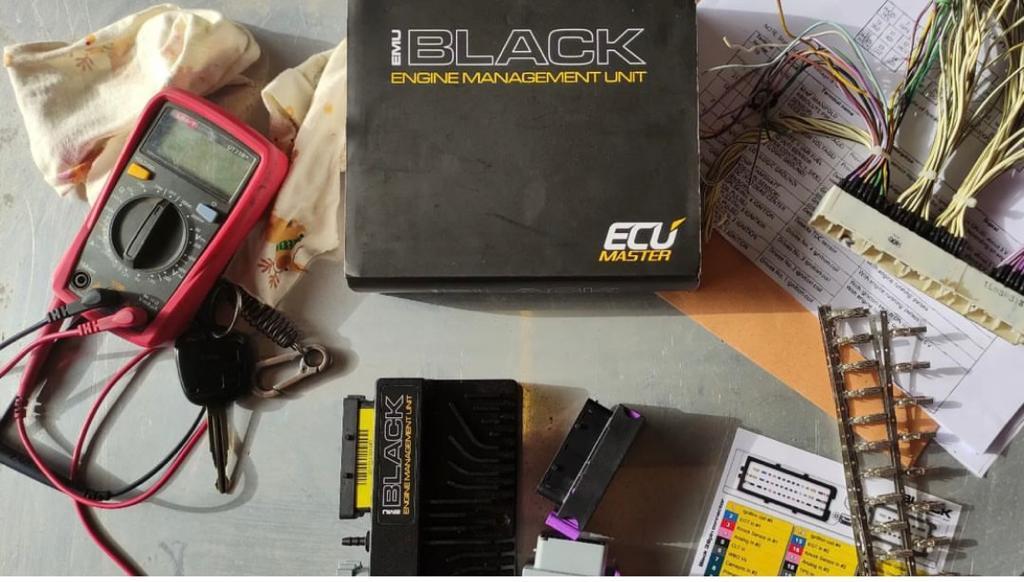

I chose the EMU Black for my Honda K20 over a Hondata Kpro. For the price, this is probably the best Standalone on the market right now!
After spending tons of time researching the best ECU for the money without breaking the bank I finally decided on the EMU Black and couldn't be any happier. It has every feature I needed for my project MK4 Supra build. I'm super anxious to get my tune dialed in and bring the car out on the street.
I’ve owned a lot of standalones from Megasquirt, AEM, Haltech, Audtrinic, Etc this is hands done one of the best easy set ups I’ve used the form factor is super compact a built like a tank as big as my iPhone XR have mix of Ford GM and Subaru sensors and no worries easy pessy lemon squeeze!
