ACT 6-Pad Sprung Heavy Duty Racing Clutch Kit | 2003-2005 Dodge Neon SRT-4 (DN4-HDG6)

2003-2005 Dodge Neon SRT-4 HD/Race Sprung 6 Pad Clutch Kit with Flywheel by ACT

DN4-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

• Product Weight (lbs.) 26.5
• Torque Capacity (ft/lbs.) 595
• Torque Capacity Over OE 88%
• Disc Material Ceramic
• Friction Surface Diameter (Inches) 9.4
• Friction Surface Diameter (mm) 240
• Input Shaft Diameter (Inches) 15/16
• Spline Count 17
• Pad Quantity 6
• Disc Type Sprung Race Disc
• Pressure Plate Type Heavy Duty
• Flywheel Type Streetlite
• Flywheel Tooth Quantity 139
• Flywheel Mounting Hole Quantity 8

Benefits

• Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
• Life: Moderate friction life, extended by ACT's exclusive diaphragm design
• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Recommended for high horsepower street or race use
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

• 2003-2005 Dodge Neon SRT-4

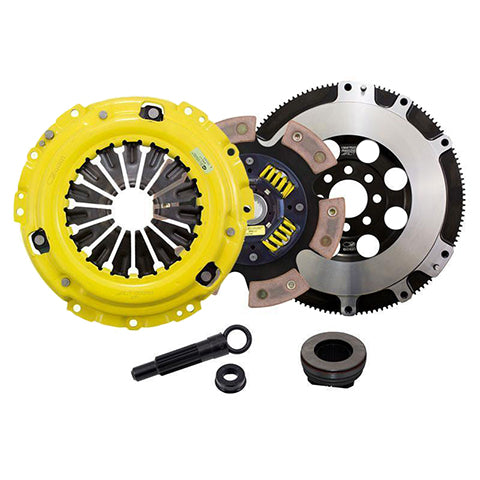

What's In The Box?

• 6 Pad Sprung Race Disc - 6240226
• P/PL Heavy Duty - D017
• XACT Flywheel Streetlite - 600340
• Alignment Tool - ATCP2
• Release Bearing - RBDN1

References

• Installation Manual

Warranty

• Manufacturer 12 Month Warranty
