Diode Dynamics 80mm HD LED Halos | 2015-2021 Subaru WRX, 2013-2015 Subaru BRZ, and 2010-2016 Hyundai Genesis Coupe (DD20XX)
Diode Dynamics*SEE DETAILS
HD LED Halos for 2015-2017 Subaru WRX (pair)

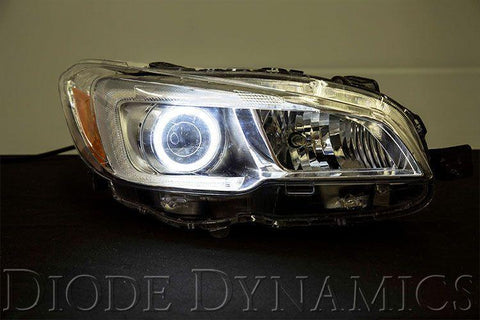

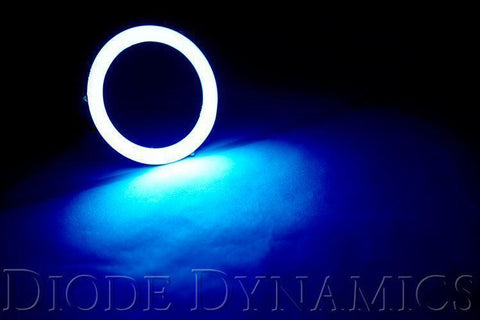

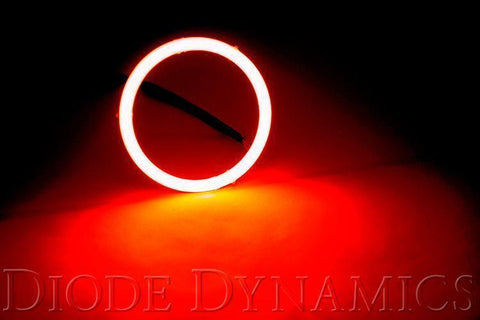

HDHalo Technology. These HD LED halo rings have been designed from the ground-up to be absolutely the brightest, most reliable halos physically possible. Each halo is populated with a large number of high-density (HD) LEDs, which are then coated by a diffusing gel, resulting in a perfectly uniform light when turned on. When off, the diffusing gel hides the chips, resulting in a clean, OEM appearance.
Sizing: All sizes are listed by outside diameter, in millimeters. Width is 8mm, so inside diameter is 16mm less than outside diameter. Total height is 4.5mm.
Wiring: All wires have a durable braided wire covering. The LED has a 20-inch wire with female JST type connector. This connector may be de-pinned in order to run wires through small holes during installation. Both the input and output wire on the driver are also 20 inches each. A pigtail is included that is also 20 inches, with male spade connectors on the end to connect to factory wiring with included T-taps. You will have plenty of room to run wires anywhere you'd like.
PWM Control: Aside from the high brightness and perfectly uniform output, one great feature of these halos is the integrated multifunction PWM dimming control. The drivers have four wires, to be connected to any 12V signals as follows:
White: White Low Power, 50% brightness
Red: White High Power, 100% brightness

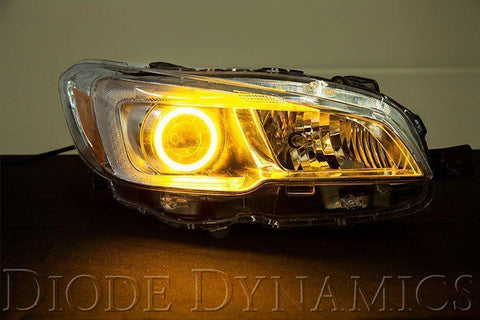

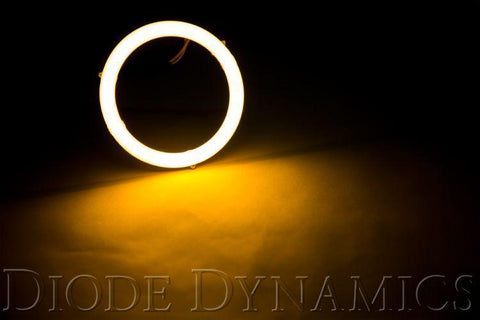

Yellow: Amber Signal, double brightness, flashing (dims if powered more than two seconds)
Black: Ground

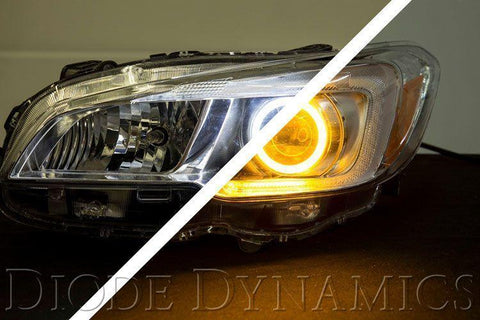

All input wires activate the halos, at different brightness levels. All switchback halos ship with "low" priority drivers. This means that if both "low" and "high" power inputs are powered, the LED will light up in white, with low power level. This is convenient for connecting the red wire to a parking light or DRL signal, for use during the day as a high-power DRL. Then, if the white wire is connected to the headlamp power, they will dim down at night. If the yellow wire is powered at any time, the halo will light up in amber color, intended for signaling. If you'd like to use amber all the time, no problem! It will dim automatically if powered for more than two seconds, to keep it safe.
This entire setup allows you to connect the halo directly as a multifunction lamp, without any external controllers needed. Of course, this is completely optional. You can just use one or two of the input wires if you'd like.
Features
- Proprietary durable phosphor coating, for uniform solid appearance
- Multi-function PWM drivers, fully waterproof, featuring low power, high power, and turn signal modes
- Extremely bright, high-density LEDs that are visible even in direct sunlight
- Integrated mounting tabs for easy installation
- Made in USA
Applications
- 2010-2013 Chevrolet Camaro
- 2008-2014 Dodge Challenger
- 2007-2014 Ford Mustang GT500
- 2010-2016 Hyundai Genesis Coupe
- 2013-2015 Subaru BRZ
- 2013-2015 Ford Fusion
- 2015-2016 GMC Canyon
- 2013-2015 Honda Accord
- 2013-2020 Dodge Durango
- 2007-2009 Toyota Camry
- 2015-2023 Dodge Charger
- 2016-2019 Toyota Tacoma
- 2016-2018 Nissan Maxima
- 2015-2021 Subaru WRX
- 2003-2010 Dodge Viper
- 2007-2008 Hyundai Tiburon
What's In The Box?
- Two (2) LED halo rings
- Two (2) waterproof drivers
- Two (2) input wire pigtails
- Eight (8) T-tap connectors
- Installation guide
Warranty
- 3 Year Manufacturer Warranty
