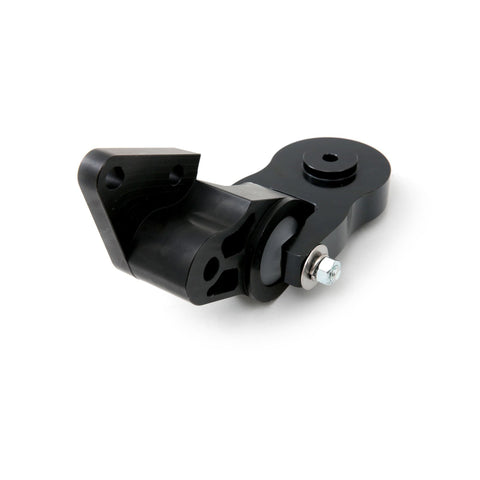

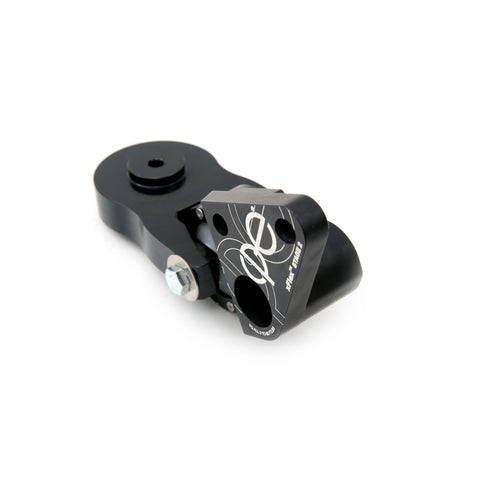

Mazdaspeed3 xFlex Stage 2 Rear Motor Mount by Custom Performance Engineering

It is well known that the stock rear motor mount on the MS3 is a weak link and cp-e™ has chosen to think outside the box on this and come up with a completely new design.

To do this cp-e™ carefully studied the layout of the stock MS3 Engine Mounts. While designing the side engine mounts it was determined that a better design could be achieved on the rear mount as well.

The way the Mazda engine mount system works is that the two side mounts provide a rotational mounting point, if just these two mounts are installed without a lower engine mount the bottom of the engine is free to swing like a pendulum. Now if you take the stock engine mount and put it in place with its horizontally mounted bushing and you apply some power, it will stop the engine from swinging but you are now stressing the bushing in two directions. These types of bushing are not really meant for this.

So cp-e™ came up with a way to stress the bushing in only one direction, by remaking both sides of the engine mount cp-e™ was able to mount the bushing vertically so now the pendulum affect of the engine is stretching or pushing in only one direction. This also increases the durability of the engine mount substantially.

Features

• Billet CNC construction.
• EPDM Bushing to protect rubber from overheating.
• Vertically mounted bushing increase’s durability.
• Machined additional pockets to create lightweight but strong mount.

Applications

• 2010 - 2013 Mazda 3 Mazdaspeed

What's In The Box?

• 1 - Engine Side Mount
• 1 - Chassis Side Mount
• Stainless Steel Hardware

Warranty

• Manufacturer Limited Warranty
