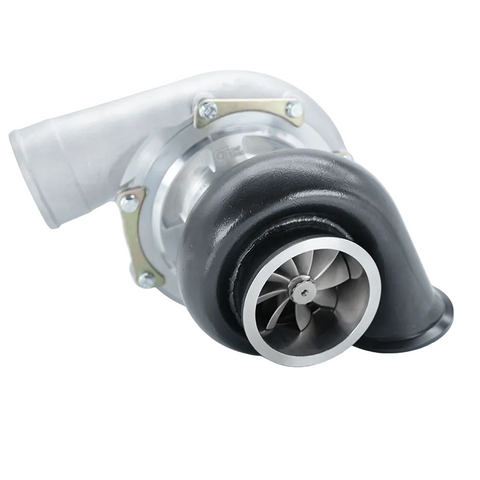

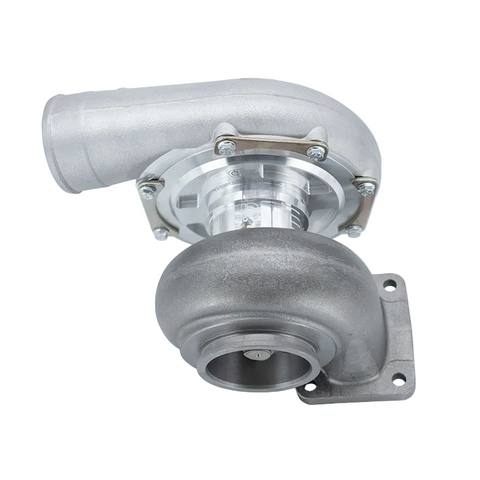

Comp Turbo CT43RX-7475 Triplex Ceramic Ball Bearing Oil-Less Turbo - 1400HP (437475-4)

CT43RX-7475 1400HP Ceramic Ball Bearing Turbocharger by Comp Turbo

The CT43RX 7475 1400HP Triplex Ceramic Oil-Less Air-Cooled Ball Bearing Turbocharger a game-changer in forced induction technology. Designed for high-performance street and strip applications, this turbo eliminates the need for oil and water lines, simplifying installation. The unit can be mounted from horizontal to vertical position

Features

• Patented Triplex Ceramic Oil-Less Air-Cooled System: Ensures ultra-smooth operation, faster spool times, and improved durability.
• Oil-Less Air-Cooled- No Oil or water lines required
• Engineered for High-Performance Applications, Suitable for Both Street and Track Use. Recommended installation engine bay 1/8-1/2 mile racing only. Street use recommended installation mid mount to remote mount turbo systems.

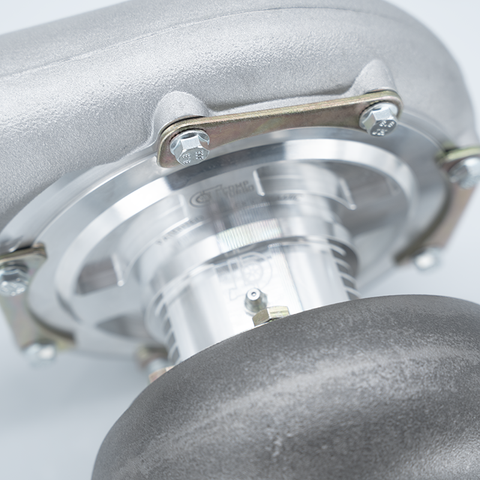

• Lightweight Billet Aluminum Center Section
• CTRX Billet Aluminum Ultra Slim Hub 7+7 Compressor Wheel 74MM
• Inconel 713C High Flow 9 Bladed Turbine Wheel 75MM
• Standard Rotation Configuration
• Available in T4 & V-Band Inlet Turbine Housings
• Fully Rebuildable & Upgradeable
• Maintenance Grease Fitting
• Horizontal & Vertical Installation
• Weight: 15 LBS
• Satin Compressor Housing Finish
• Standard Turbine Housing Finish (if a Turbine Housing is chosen)
• Standard Anti-Surge
• Billet Cartridge Finish

Specifications

• Min-Max HP: 500-1400HP
• Min-Max Displacement: 2.0L-6.0L

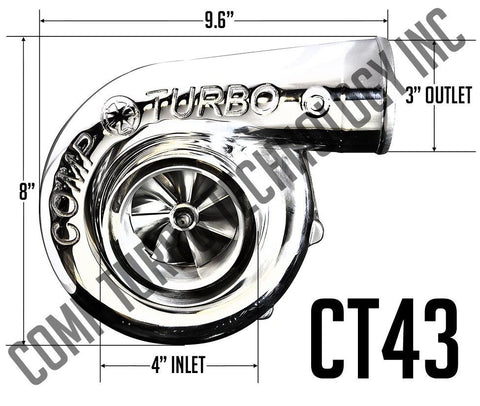

• Inlet: 4.0"
• Outlet: 3.0"
• A/R: .85
• Pressure Port: 1/8 NPT
• Compressor Inducer: 74mm
• Compressor Major: 102mm
• Turbine Inducer: 82mm
• Turbine Exducer: 75mm

Applications

• Universal

What's In The Box?

• 1 - CT43RX-7475 Ceramic Ball Bearing Turbo

Warranty

• 2-Year Warranty covering defects in materials and workmanship
