Chase Bays Triple Baffled Power Steering Reservoir | Multiple Fitments (CB-U-BA/OEPSR)

Triple Baffled Power Steering Reservoir by Chase Bays

Countless hours of research and development were put into our newest Power Steering Reservoir. This isn’t as simple as putting 2 fittings on a fluid container and calling it a day. It is far more complex. The smaller fitting on the Reservoir is the fluid return from the rack. It can be sent back at pressures up to 120psi. When that hits the fluid in the reservoir it can cause extreme foaming aeration if not properly slowed down and directed. The more the steering and RPM on the car, the higher the pressures will be. This is also what commonly causes the spillover through the cap under heavy use. Most people think their fluid is boiling over when this happens but in most cases it is not…just turbulence.

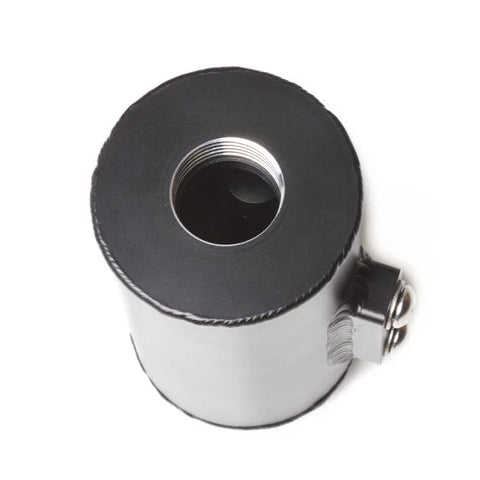

We have put serious engineering time into the internal design to negate this aeration and spillover entirely. The performance of this Power Steering Reservoir has gotten rave reviews from our customers. In the reservoir photos you can see a "chimney" inside, there is a multi-layer design within this chimney. We can't give away all of our secrets, but just know you won't have any aeration or spillover issues. Between on track testing and computer fluid dynamics, we were able to slow down 120psi to 12psi in 2 inches of fluid motion. Thats just 2 of the baffles, it doesn’t end there.

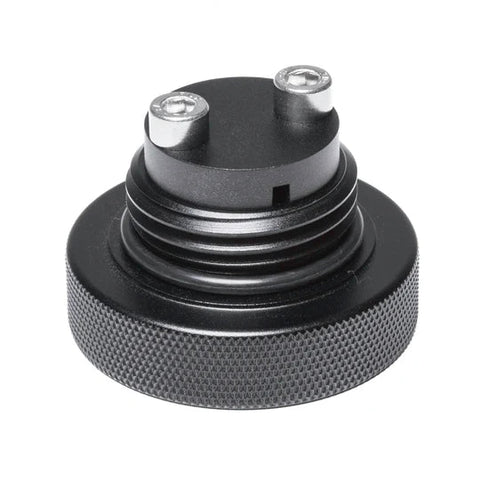

Power Steering is a loop hydraulic system so it needs to be vented. The cap has a unique baffle design to block fluid from pushing out the vent. Go to any road race/drift/rally event and look at all the factory (and most aftermarket) power steering reservoirs. By the end of the day there is spillover all around the reservoir. It was our goal to be the 1 in 100 reservoirs to have no spillover. We are proud to say; that goal has been met.

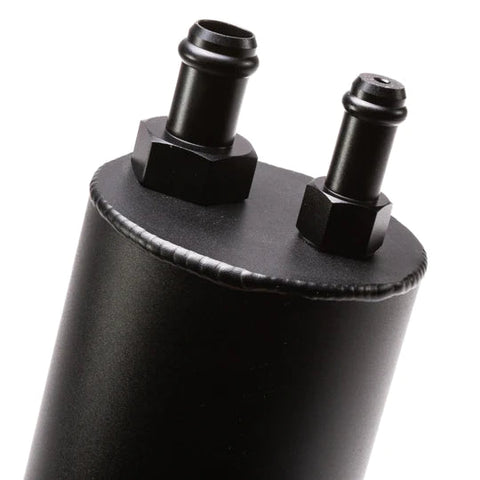

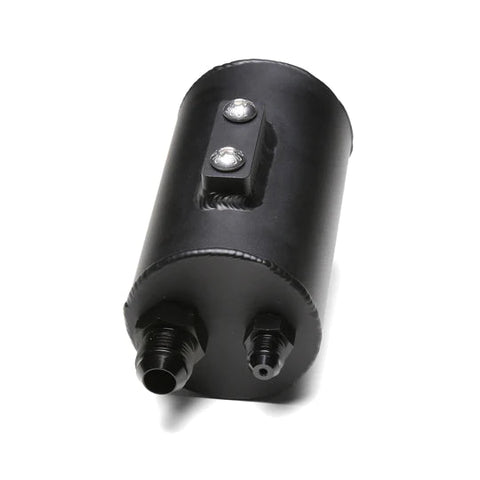

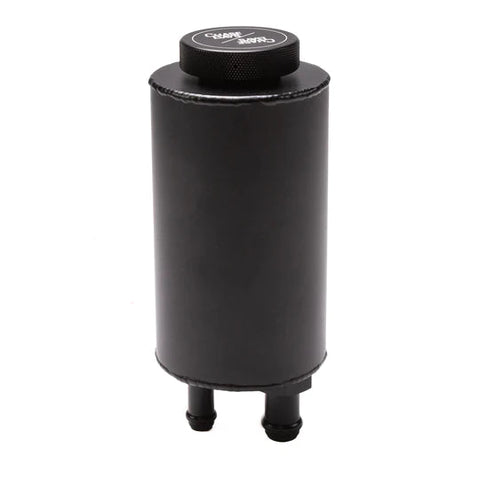

Choose between a -6AN & -10AN or OE Style Push-On connector setup. For OE Style setups the hose sizes are as follows:

Rack to Reservoir Adapter Fitting OD (Return) 12.11mm / 0.47" inch

Reservoir to Pump Adapter Fitting OD (Feed) 16.5mm / 0.65" inch

Features

• 6061 Aluminum Construction

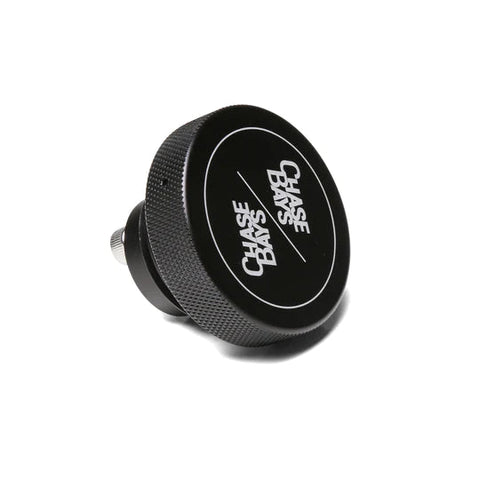

• Anodized Semi-Gloss Black w/ White Laser Etched Cap

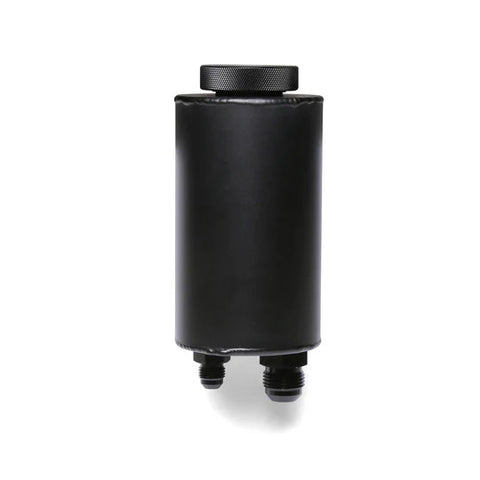

• 5" High x 3" Diameter (6" total height including cap and lower fitting)

Benefits

• Compact and Minimal Design
• TRIPLE Baffled for BULLETPROOF Performance
• Completely Modular Design

Applications

• Universal

What's In The Box?

• 1 - Power Steering Reservoir

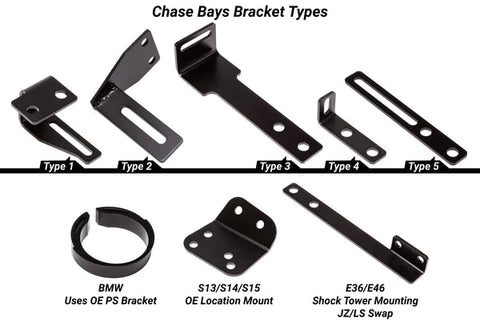

• 1 - Mounting Bracket

Warranty

• Limited Manufacturers Warranty
