Chase Bays Power Steering Kit | 2002 - 2007 Subaru WRX / STI (CB-WRX-PSK)
Chase BaysPower Steering Kit for 2002 - 2007 Subaru WRX STI by Chase Bays
The Chase Bays Power Steering Kit for Subaru WRX STI is designed to eliminate the common factory power steering leaks, fluid spillover, and overheating issues with improved aesthetics, durability, and stealthy design. It is a full 100% upgraded A.N. fitting replacement of the stock reservoir and hoses. From the reservoir to pump to rack.

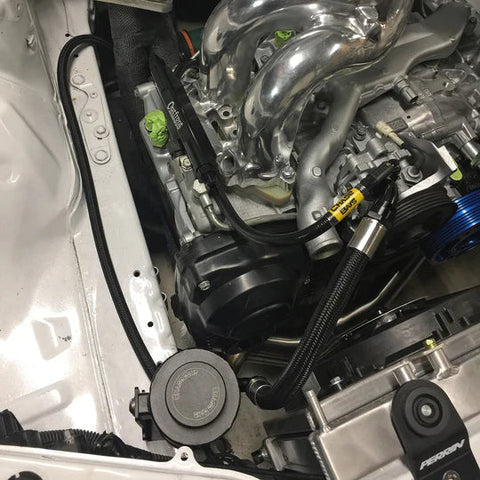

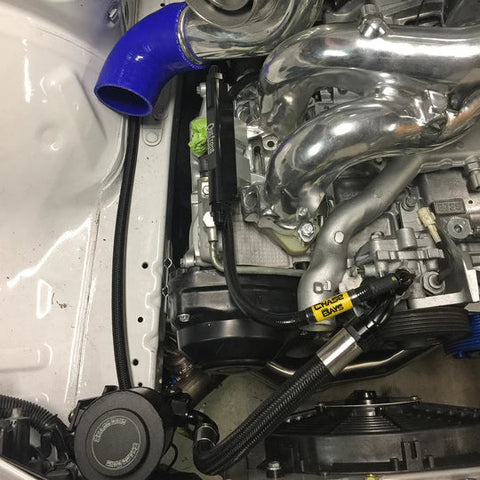

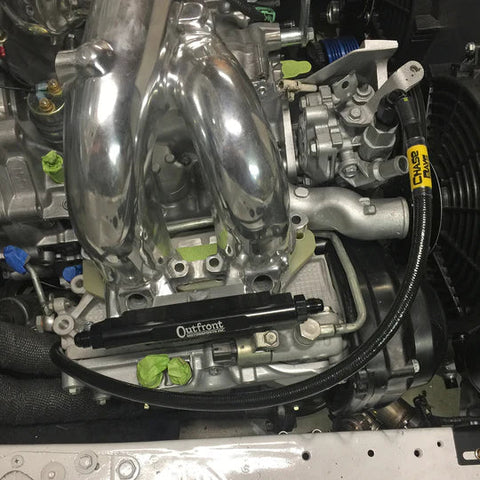

Chase Bays' over-engineered Triple-Baffled Power Steering Reservoir (aeration and spillover proof) is at the core of this kit. It optionally comes with an upgraded black aluminum heatsink cooler that mounts on the upper core support (see photos) for easy install and additional airflow. Chase Bays only uses the highest quality components available. Our reservoir is constructed of 6061 aluminum and is anodized black with a laser etched cap.
Countless hours of research and development were put into their newest Power Steering Reservoir. This isn’t as simple as putting 2 fittings on a fluid container and calling it a day. It is far more complex. The smaller fitting on the Reservoir is the fluid return from the rack. It can be sent back at pressures up to 120psi. When that hits the fluid in the reservoir it can cause extreme foaming aeration if not properly slowed down and directed. The more the steering and RPM on the car, the higher the pressures will be. This is also what commonly causes the spillover through the cap under heavy use. Most people think their fluid is boiling over when this happens but in most cases it is not just turbulence.
In the reservoir photos you can see a "chimney" inside, there is a multi-layer design within this chimney. Chase Bays won't give away all of their secrets, but just know you won't have any aeration or spillover issues. Between on track testing and computer fluid dynamics, they were able to slow down 120psi to 12psi in 2 inches of fluid motion. That's just 2 of the baffles, it doesn’t end there.
Power Steering is a loop hydraulic system so it needs to be vented. The cap has a unique baffle design to block fluid from pushing out the vent. Go to any road race/drift/rally event and look at all the factory (and most aftermarket) power steering reservoirs. By the end of the day there is spillover all around the reservoir. It was their goal to be the 1 in 100 reservoirs to have no spillover. Chase Bays is proud to say; that goal has been met.
Features
- Constructed of anodized black 6061 aluminum

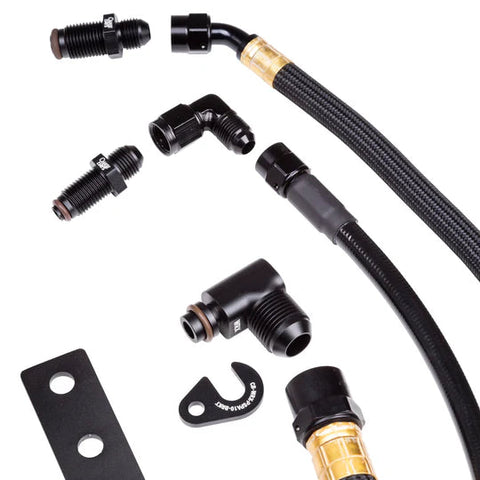

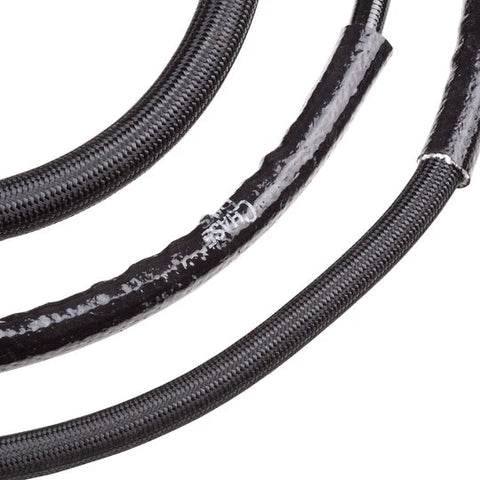

- -6AN stainless steel, Teflon PTFE lined, and black PVC coated hoses

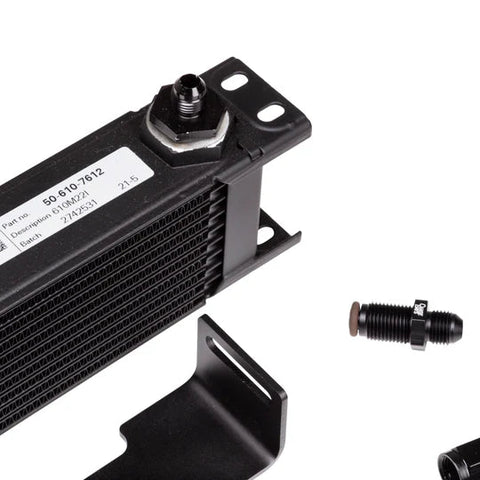

- Optional inline heatsink cooler constructed of black anodized aluminum
Benefits
- Replaces old, leaky, or otherwise non-functional power steering
Applications
- 2002 - 2007 Subaru WRX / STI
What's In The Box?
- 1 - High Pressure Power Steering Kit
