Chase Bays Oil Cooler | Universal (CB-OILC)
Chase Bays*SEE DETAILS
Oil Cooler by Chase Bays
Chase Bays Universal Oil / Fluid Coolers are for enthusiasts who want a rigorously motorsport tested, efficient, lightweight, and aesthetically pleasing cooling solution for their build. They were developed specifically for Oil, Transmission Fluid (ATF/MTF), Power Steering Fluid, and Differential Fluid.
The Chase Bays Oil Coolers are a Drawn-Cup Cooler design. Drawn-cup coolers are built by inserting a turbulator plate onto the stamped cup section. Oil passes from the larger oblong holes at each end of the cup section; the two small holes flanking the oblong hole are used for alignment during assembly. The advantage vs. Tube and Fin type in our experience is durability. The drawn cup respond better to the higher pressure seen in oil and power steering system than tube and fin.
Chase Bays firmly believes in the quote "Success is in the details." One look at their products, and you'll note how detail oriented they are. From the initial thought and idea, the R&D, the testing, and the final release to being a product for sale. Nothing is left out and Chase Bays tries to consider everything. Their products are rigorously tested to make sure they work well against their own abuse and eventually yours.
Features

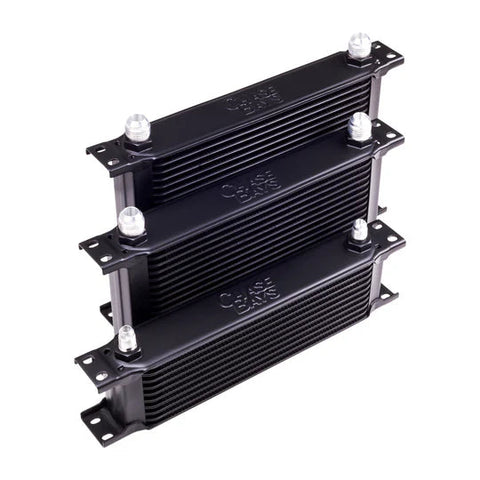

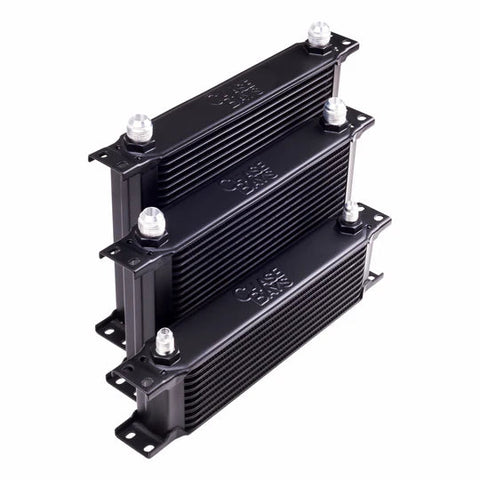

- 10 Row Fluid Cooler with 6AN Male Inlet/Outlet Measurements: 13" x 3" x 2" Overall / 11.25" x 3" x 2" Core
- 19 Row Fluid Cooler with 10AN Male Inlet/Outlet Measurements: 13" x 5.75" x 2" Overall / 11.25" x 5.75" x 2" Core

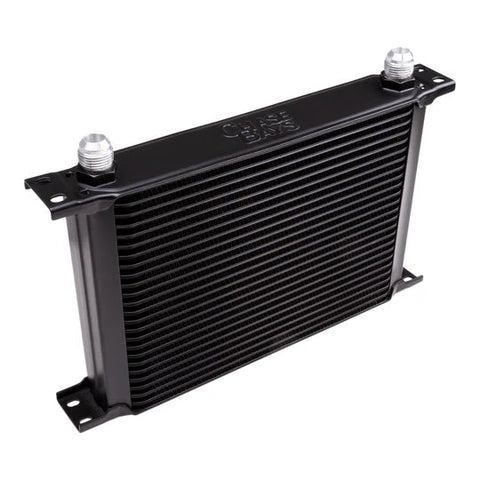

- 25 Row Fluid Cooler with 10AN Male Inlet/Outlet Measurements: 13" x 7.5" x 2" Overall / 11.25" x 7.5" x 2" Core
