Chase Bays Hydro Handbrake Brake Line Kit | 1983 - 1987 Toyota Corolla AE86 (CB-AE86-BBE/OEM)
Chase BaysHydro Handbrake Brake Line Kit for 1983 - 1987 Toyota Corolla AE86 by Chase Bays
The Chase Bays Hydro Hand Brake Line Kit is designed for those who want to easily plumb a hydraulic hand brake into their AE86 chassis. This kit is offered with 2 variations.

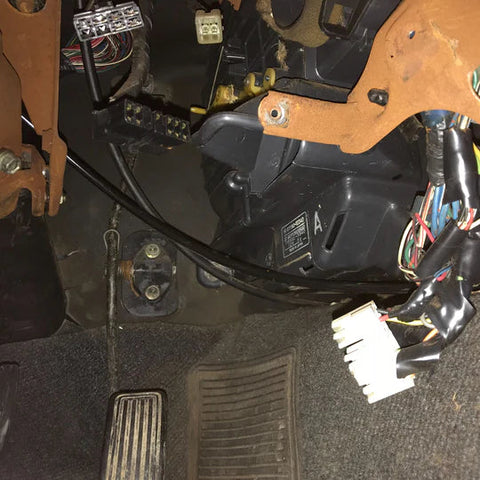

Stand Alone Type - This is to be paired with dual rear caliper setup or stand alone rear braking system. It goes directly from the Handbrake Master Cylinder to the secondary calipers on the rear knuckles. We use bulkhead fittings to pass thru the chassis metal so either smoke or weather doesn't have another path to get into the cabin.

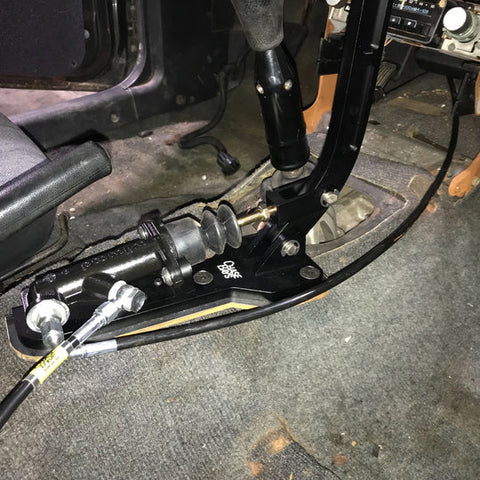

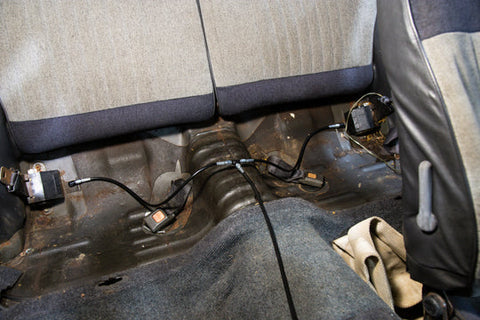

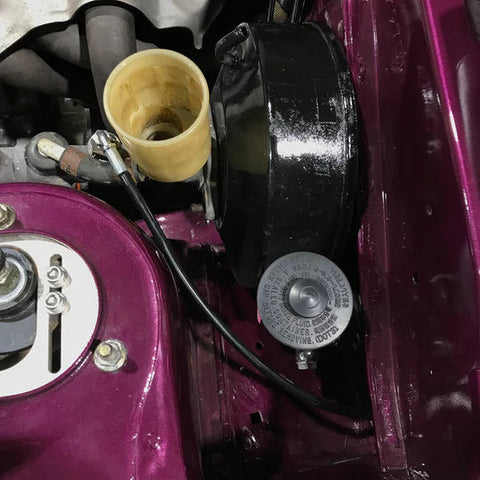

Inline / Pass Thru Type - This is to be plumbed between the existing rear brake line to lock up the existing rear calipers on each side. Essentially creates a detour for the fluid. It starts at the factory master cylinder OR if you have the Chase Bays Brake Line Relocation for Brake Booster Eliminator; it starts at the Bias Valve OUT side. Then in either scenario it goes to the Handbrake IN side. It will then run from the Handbrake OUT section to the back of the car directly to the calipers. We use bulkhead fittings to pass thru the chassis metal so either smoke or weather doesn't have another path to get into the cabin.
Please Note: This does eliminate the entire hardline that runs under the chassis and the lines that currently connect to your calipers. If you ever change from inline to standalone setup, you will just connect the rear brake line(s) in the engine bay and at calipers like you had before, and then use this existing kit to connect to your new calipers.
Features

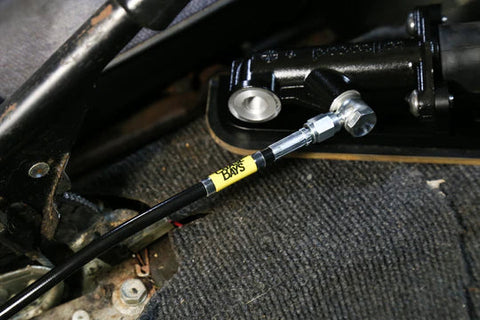

- -3AN stainless steel braided, Teflon PTFE lined, black PVC coated lines
- Chase Bays pressure tests every line they assemble
- Feature 3
Benefits
- Allows for conversions to a hydro handbrake
Applications
- 1983 - 1987 Toyota Corolla AE86
What's In The Box?
- 1 - Hydro Handbrake Brake Line Kit
