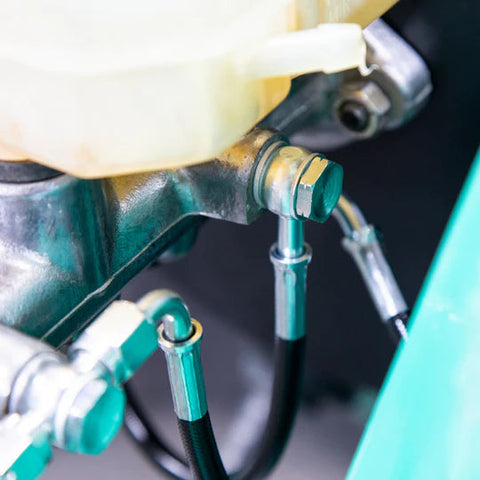

Chase Bays Brake Line Relocation | 1982 - 1991 BMW 3-Series (CB-E30-ABSOEMC)
Chase Bays*SEE DETAILS
Brake Line Relocation Kit 1982 - 1991 BMW 3-Series (E30)
The Chase Bays Brake Line Relocation for BMW E30 with OE Master Cylinder (OEMC) is designed for enthusiasts who want to eliminate engine bay clutter and improve braking performance by relocating their brake lines in a practical way, replacing the factory preportioning valve / block with an adjustable bias valve, delete abs, or compensate for a different master cylinder setup.

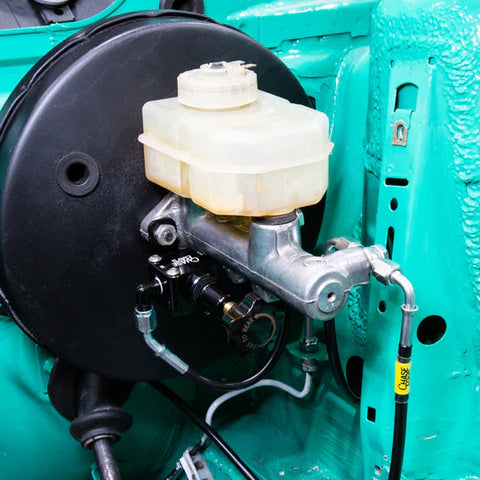

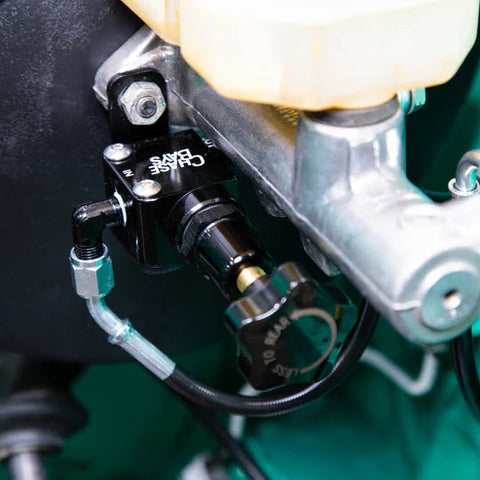

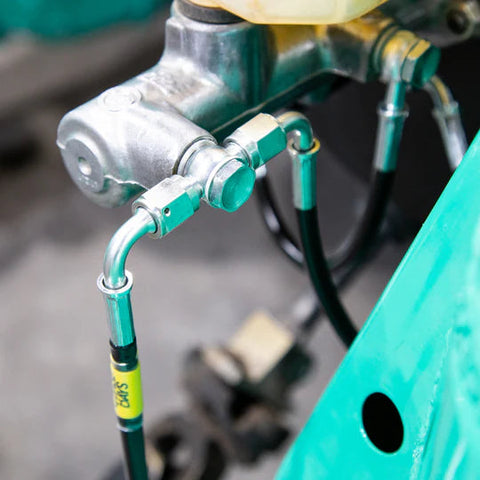

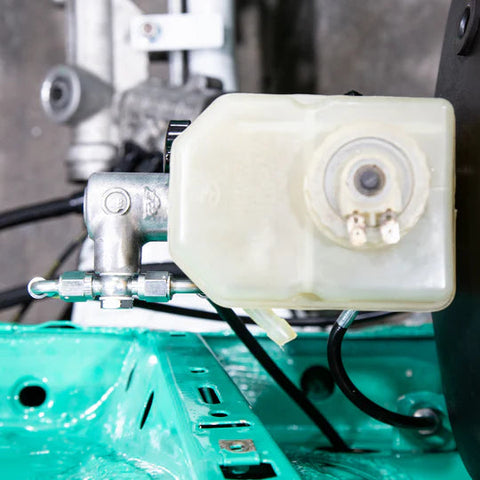

This kit keeps all the lines in the engine bay and mounts the Adjustable Bias Valve to a master cylinder bolt. The lines have been designed to route in the best path possible. Low on the firewall, behind steering column, under frame rail, however you choose. Plus, of course, a safe distance from high heat and/or moving objects. The left to right line can be installed low on the firewall just above the transmission or along the rear sway bar.

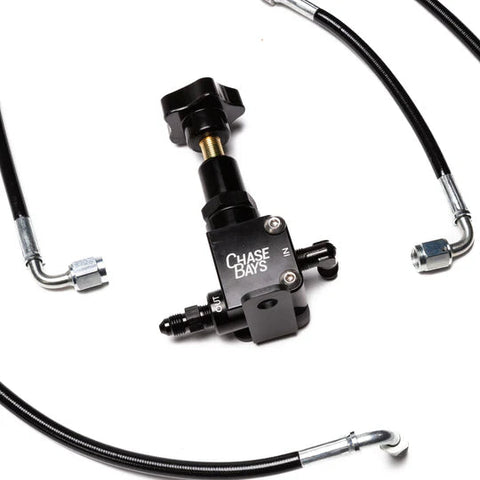

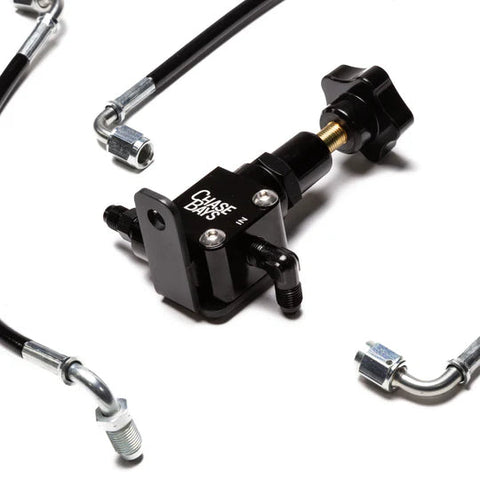

The Brake Line Relocation replaces all of the engine bay hard lines up to the lines in the fenderwell. It does not include the fenderwell to caliper lines. The front to rear line connections are altered some for this kit. The OEM inline proportioning block will be eliminated and replaced with an Adjustable Bias Valve. Once it is removed the supplied metric tube nut female to -3AN male adapter will thread onto the OEM rear line tube nut. The -3AN line will then connect directly to this adapter.
Features

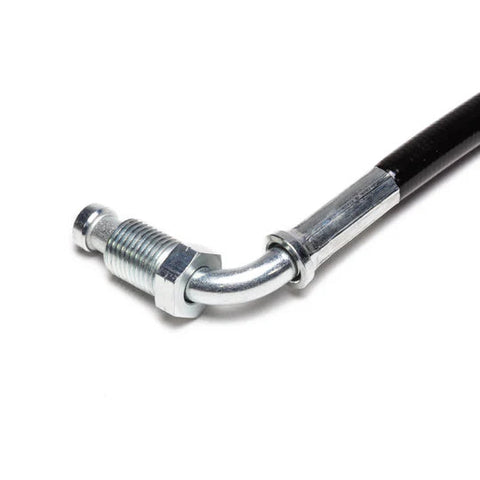

- -3AN stainless steel braided, Teflon PTFE lined, black PVC coated lines
Benefits
- Updated braking system meant to last
Applications
- 1982-1991 BMW E30: 316, 316i, 318i, 318is, 320i, 320is, 323i, 324d, 324td, 325, 325es, 325i, 325is, 325ix, M3 (Does NOT fit LS Swapped E30s)
What's In The Box?
- 1 - Brake Line Relocation/Replacement Kit
