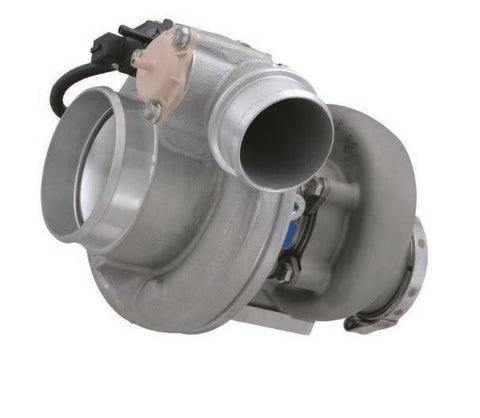

9180 T3 IWG Turbocharger (600-1000HP) By Borgwarner

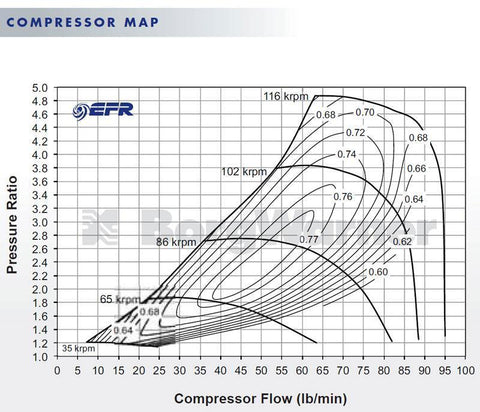

EFR 9180 is the biggest, baddest, highest flowing turbo in the EFR family. Capable of a remarkable 94lb/min airflow and stable at very high boost levels, the 91mm OD compressor measures 67.7mm inducer and is a 7 blade FMW compressor.
This turbo will redefine what 67mm turbos are capable of. After receiving requests from many high power enthusiasts and drag racers restrained to a 67mm inducer, there was a clear need for 1000hp capable turbos that still provide good spool and response. Using the high flowing 1.05 a/r Twinscroll T4 turbine housing is the most efficient way to run this as a single turbocharger. If twin turbos will be run, the .83 a/r or 1.05 a/r can be used, depending on manifolds and space constraints.
Ideal for use as single turbo applications in the 600-1000hp per turbo range, or as very high power twin turbo applications >1000-1700+hp. Available with .83 a/r undivided T3 internal WG or 1.05 a/r divided twin scroll T4 housings (external WG). Ceramic Ball Bearing only, water cooling optional (recommended)
Features
- Gamma-Ti turbine wheel
- Extended Tip Technology
- Boost Control Solenoid Valve (BCSV)
- Forged Milled Compressor Wheel (FMW)
- Integrated Compressor Recirculation Valve (CRV)
- Dual ceramic ball bearing assembly with metal cage
- Compressor cover with speed sensor mounting provisions
Relevant Part Numbers
Specifications
- 600-1000HP

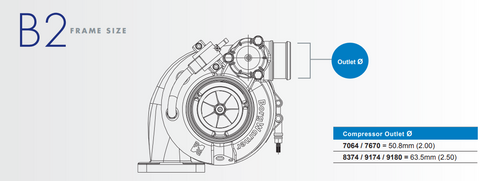

- B2 Turbo Frame Size
- 68mm Comp. Wheel Inducer Dia.
- 91mm Comp. Wheel O.D.
- 80mm Turbine Wheel O.D.
- Straight Compressor Outlet
What's in the Box?
- 1 T3 9180 .83A/R Turbocharger
Warranty
- 1-Year Manufacturer's Warranty
