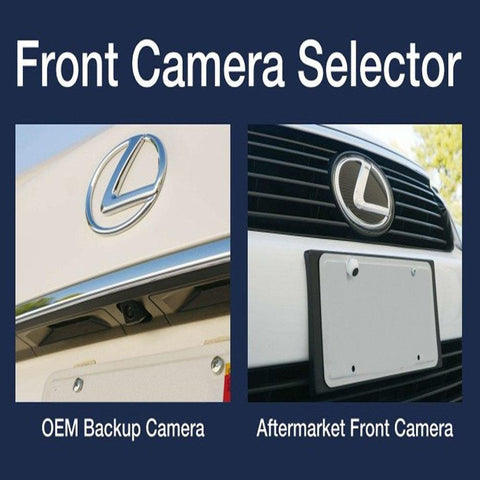

Beat-Sonic Front Camera Interface | Multiple Lexus Fitments (CS5EP)

2014-2021 Lexus Front Camera Interface by Beat-Sonic

This product provides front camera connectivity for select 2014+ Lexus.

By pressing the selector button, the front camera is displayed for the duration pre-set using the inbuilt programmable timer. The timer is programmable for 5 sec, 10 sec, 15 sec, 20 sec or timer disable (i.e. push on / push off). In addition, the front camera can be programmed to automatically display at speeds less than 9mph to assist when front parking.

Features

• Voltage: DC11V ~ 15V
• Current consumption: 50mA of less
• External dimensions: 40 x 25 x 57mm
• Weight: 55g

Benefits

• Ability to switch between front camera, rear camera and factory Lexus screen
• Ability to display rear camera without switching the gear to reverse
• Seamless operation with a press of a button
• Built-in video noise filter for high definition resolution
• Control button to manually turn on the front camera (5 seconds)
• Ability to connect module to speed sensor for automatic front camera display at parking lot speed
• Plug and play installation requires no modification or splicing to factory harness

Applications

• 2014-2017 Lexus CT 200h
• 2015-2020 Lexus ES 350
• 2015-2020 Lexus ES 300h w/ factory navigation equipped model only
• 2015-2019 Lexus GS 200t / 300 / 350 / 450h / GS-F
• 2014-2019 Lexus GX 460(without "Park Assist Monitor")
• 2014-2020 Lexus IS 200t / 300 / 250 / 350
• 2018-2020 Lexus LC 500 / 500h
• 2015-2017 Lexus LS 460 / LS 600h w/ factory navigation equipped model only
• 2018-2020 Lexus LS500 and LS500h
• 2015-2019 Lexus NX 200t / 300 / 300h w/ factory navigation equipped model only
• 2015-2019 Lexus RC 200t / 300 / 350 / RC-F
• 2016-2020 Lexus RX 350 / 450h w/ factory navigation equipped model and no 360 camera only
• 2019-2021 Lexus UX 250 / 200

What's In The Box?

• 1 - Front Camera Selector

References

• Installation Instructions

Warranty

• Beat-Sonic products come with a limited warranty covering manufacturer's defects. Products that shows signs of abuse and improper installation and usage will not be covered under our policy.
