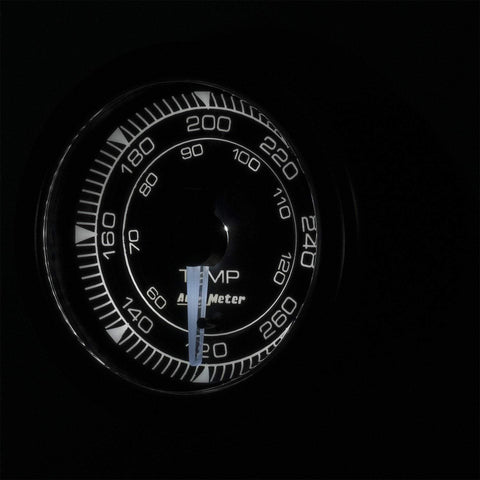

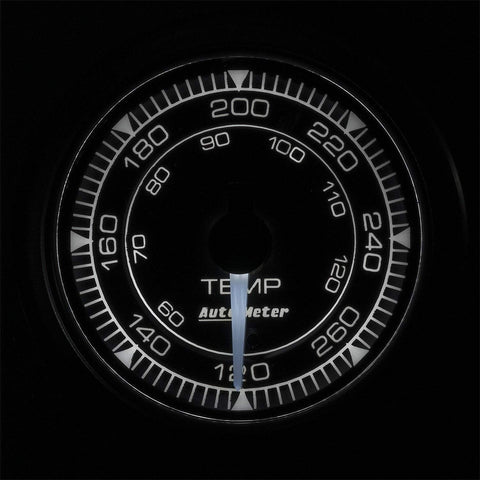

Auto Meter Chrono 2-1/16" 120-280 °F Temperature Gauge (8154)

Chrono Series 120-280 °F Temperature Gauge by Auto Meter

Engines and transmissions don’t like high fluid temperatures, whether it is water or oil. Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding temperature gauge on the market. AutoMeter’s advanced 1/8” NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation.

Features

• Unique three dimensional dial design gives added depth and style to your custom dash
• Over 320º of pointer movement adds dial scale and resolution, providing the most accurate reading in an analog dial
• Features metric and imperial scalings for easily relatable readings on applications around the world without the need for mental unit conversions
• Modern white LED through-the-dial lighting provides clear visibility during nighttime use
• Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
• Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
• AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
• The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system

Applications

• Universal

Specifications

• Size: 2-1/16" (52.4mm)
• Type: Digital Stepper Motor
• Range: 120-280 °F
• Lighting: LED

What's In The Box?

• 1 - Chrono Series Temperature Gauge
• 1 - 1/8" NPT Temperature Sender
• 1 - 3/8" NPT Adapter
• 1 - 1/2" NPT Adapter
• 1 - Wiring Harness
• Mounting Hardware
• Install Instructions

References

• Installation Instructions

Warranty

• Manufacturer Standard Warranty
