ARP Head Stud Kit | 1990-1992 Toyota MR2 and 1986-1999 Toyota Celica (203-4204)

Toyota 3SGTE Head Studs

ARP uses premium grade 8740 alloy that is heat treated to 200,000 p.s.i. This procedure ensures complete heat penetration and the results are far superior to those lesser quality studs from other manufacturers who just dump pieces in a basket and hope for the best. Following heat treat, each stud is centerless ground to make it as close to perfectly concentric as possible. This procedure involves about ten very slight cuts and results in an exceptionally straight part. ARP studs are thread rolled after heat treat which gives them about 1000% better fatigue strength than studs that are threaded prior to heat treat (a very common industry practice). It costs more to do it this way because it's tough on tooling but the results are well worth the extra effort.

Features

• 8740 alloy
• Tensile strength: 200,000 PSI

Recognizing Head Stud Failures

Applications

• 1986-1999 Toyota Celica
• 1990-1992 Toyota MR2 Turbo

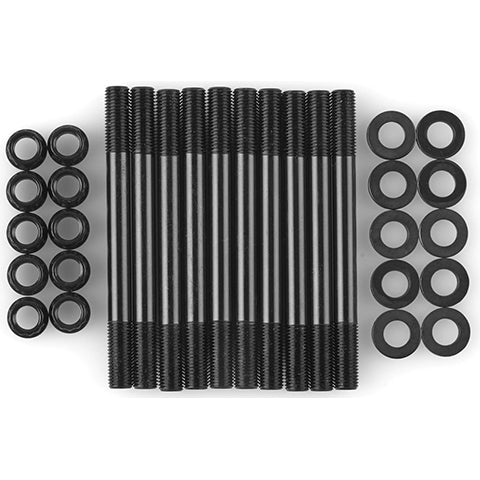

What's in the box?

• 1 - ARP Head Studs Kit
• 1 - Parallel Ground Washers Kit
• 12 - 8740 Chromoly Steel Nuts
• 1 - .5 oz. pack of ARP Ultra-Torque fastener assembly lubricant

Warranty

• ARP Warranty
