APR Tuning High Pressure Fuel Pump Upgrade | 2006-2009 Volkswagen GTI / 2012-2013 Golf R (MS100016)

Performance High Pressure Fuel Pump for Direct Injection 2006 - 2009 Volkswagen GTI / 2012-2013 Volkswagen Golf R by APR Tuning

The APR High Pressure Fuel Pump (HPFP) dramatically increases the maximum volume of fuel the HPFP can deliver. In doing so, the direct injection fueling system is capable of satisfying fueling requirements set forth by high horsepower setups. This is accomplished by increasing the displacement of the pump using high quality components to exacting tolerances.

A low pressure fuel pump (LPFP) in the fuel tank delivers fuel to the high pressure fuel pump (HPFP) at roughly 4 to 6 bar. Fuel pressure is then bumped up to a maximum of 110-130 bar, depending on factory parts, with the HPFP. Finally, high pressure fuel is delivered to the injectors, which spray directly into the cylinders.

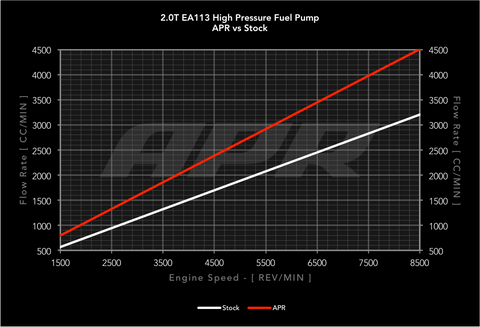

We dramatically increase the volume of fuel the HPFP can displace at every RPM by increasing the displacement of the HPFP. This is accomplished by increasing the bore diameter of the pump's internal pressurizing cylinder. It's important to understand, despite the name, a HPFP upgrade is not necessary designed to increase the engine's fuel rail pressure. The primary goal is to increase the volume of fuel available, which will keep fuel pressure steady even in the most demanding of situations!

Features

• Dramatically increases the volume of fuel displaced by the HPFP
• Maintains higher pressures under demanding situations
• Fully machine tested and broken in before shipping
• DLC coated piston
• Heat-treated bearing-grade stainless steel material
• Upgraded and weight matched spring

Applications

• 2006 - 2009 Volkswagen GTI
• 2012 - 2013 Volkswagen Golf R

What's In The Box?

• 1 - Crank Pulley
• 1 - Supercharger Pulley
• Mounting Hardware

Warranty

• APR Tuning Limited Warranty
