ALPHA Performance Carbon Fiber/Billet Intake Manifold Standard Fuel Rail | 2009-2020 Nissan GT-R (ALP.07.08.0101-1)

2009-2020 Nissan GT-R Carbon Fiber/Billet Intake Manifold Standard Fuel Rail by ALPHA Performance

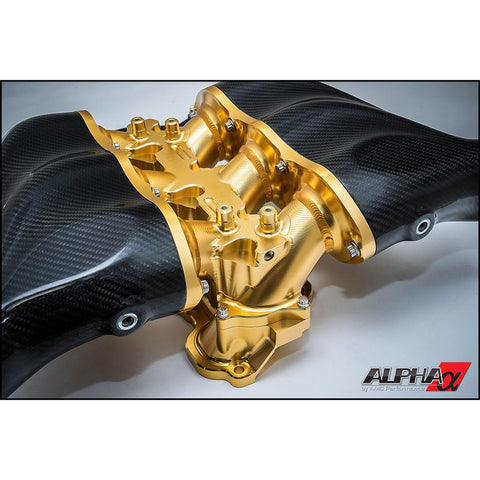

The Alpha Performance R35 GT-R Carbon Fiber Intake Manifold has been painstakingly designed by AMS to be the most efficient and power producing one available. Attention to every detail was accounted for when creating this high performance induction component. On looks alone, you might agree, it makes the perfect centerpiece for your GT-R’s engine bay. However, if you’re familiar with the Alpha product line, you already understand that our aspiration has always been to offer you much more!

Unlike most aftermarket manifolds where gains are seen near the top of the power band and suffer near the bottom, the Alpha GT-R Carbon Fiber manifold provides global performance. Compared to the leading cast aluminum intake manifold on the market, our piece not only produced more HP and torque but it did so through the ENTIRE POWER BAND! From the moment your turbos spool up, the Alpha intake manifold starts making more power and torque.  The best part is nothing is sacrificed in terms of response or power under the curve.

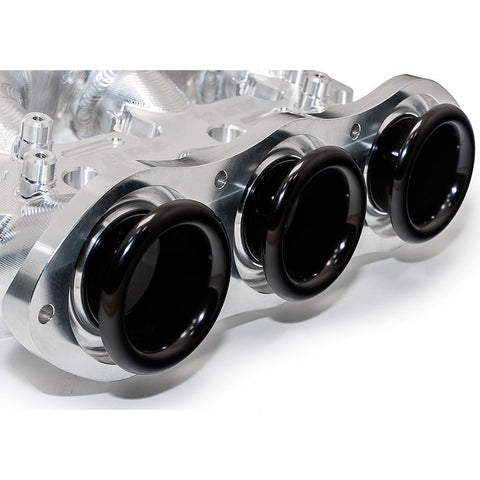

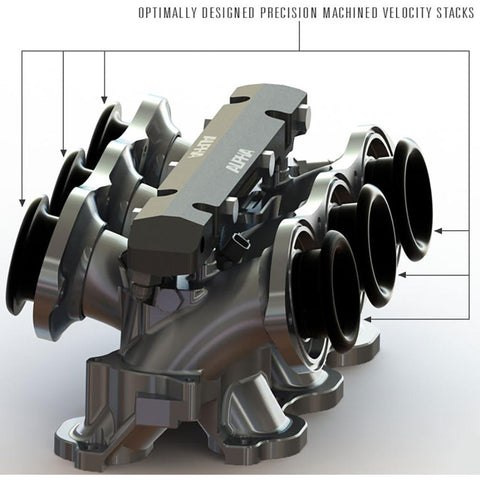

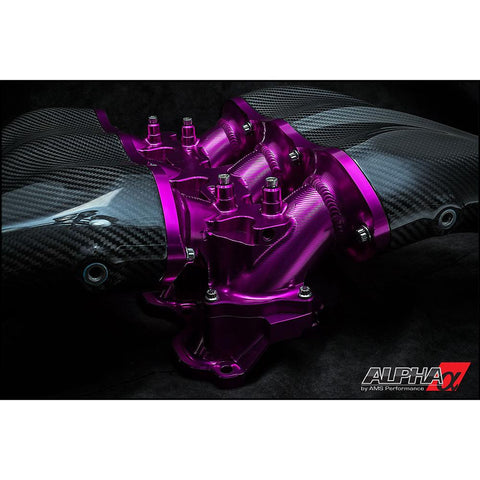

Proper function of the plenum is extremely important to the performance of any intake manifold. In the case of the GT-R, there are two plenums – one for each bank. Not only should they be sized for correct volume, they provide even more benefits when shaped in such a way that distributes charged air more evenly amongst each of the precisely machined CNC aluminum velocity stacks leading into the runners. Both lightweight carbon fiber plenums are molded and tapered to channel charged air effectively – reducing turbulence and accelerating the delivery of charged air to the engine. By maintaining balance and sustaining maximum airflow velocity and pressure when needed, your GT-R benefits by outputting more horsepower!

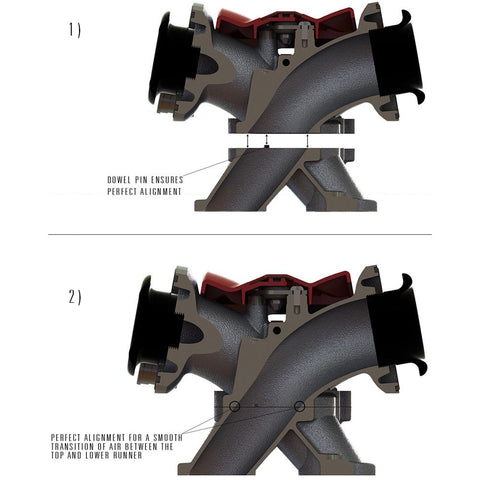

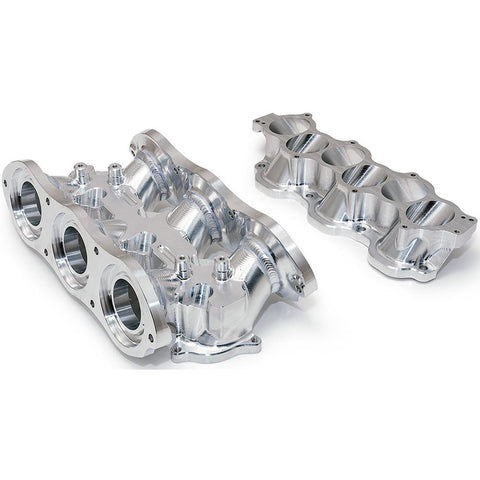

Each manifold is matched to its upper and lower running section to maintain the perfect flow of air from the throttle body to the cylinder heads. To achieve this, our engineers called for very tight tolerances where the upper and lower sections adjoin. That wasn’t enough though. To perfectly align the upper and lower ports, they took it a step further and installed dowel locating pins to ensure there were no steps or protrusions that could cause unnecessary turbulence found on other aftermarket manifolds.

We wanted to offer an intake manifold with the highest level of strength and reliability so we teamed up with an expert in the field.  Using aircraft grade epoxies and carbon fiber layering methods, we constructed a manifold that would match the strength tolerances of key components used in the aerospace industry.  We then cycle tested our finalized design 144,000 times from 0–50psi in a high heat environment in order to replicate over 20 years of operation by the average GT-R owner! In the end, a burst test was performed where the test manifold was subjected to over 150psi! No other manifold on the market has undergone such grueling tests!

For extremely high-powered GT-Rs, provisions are available on the manifold and an additional Alpha fuel rail can be installed which will supply enough fuel to feed a VR engine capable of producing over 2000+ horsepower. Positioning of fuel injectors is critical since optimizing the spray angle of the injector can improve fuel atomization and efficiency. Our engineers took all of these ideas to heart when designing our third rail setup. This option is available for customers wishing to change their standard two rail Alpha carbon manifold to a three rail system down the road.

Features

• The most powerful VR38 intake manifold on the market
• Dowel pin aligned for smooth, continuous flow between upper and lower runners

• Dual MAP sensor ports allow for monitoring bank to bank differences in boost pressure
• Retains PCV and functions exactly like stock
• Extra vacuum ports on plenums
• As these motorsports grade carbon fiber parts are hand laid, slight imperfections or weave pattern variances can be expected.

Please Note: While other fuel rail kits may work (stock rails are not compatible), AMS can only guarantee AMS/ALPHA Fuel rails to be compatible with this Intake Manifold.

Benefits

• Estimated 18hp gain over stock
• Over 30% lighter than the leading cast intake manifold
• Show stopping design

Applications

• 2009-2021 Nissan GT-R


What's In The Box?

• 1 - Intake Manifold

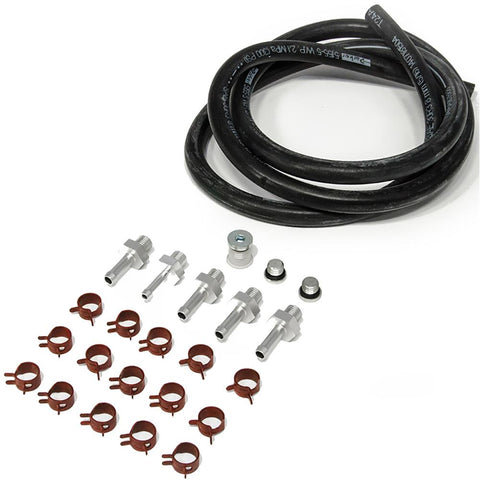

• Installation Hardware

References

• Installation Instructions

Warranty

• AMS Performance's Limited Manufacturer's Warranty
