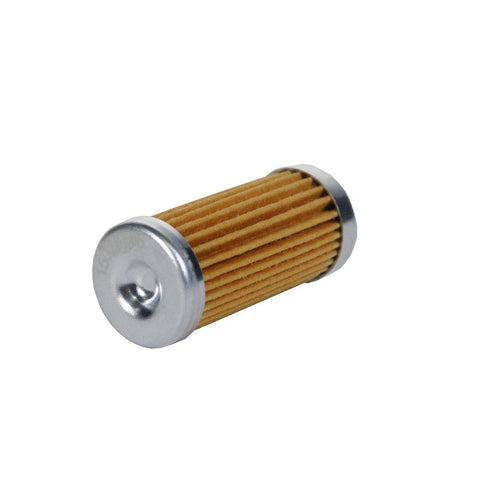

Aeromotive Replacement 40 Micron Fabric Element (12603)

100-M Stainless Element: ORB-10 Filter Housings by Aeromotive Inc.

Commonly the most overlooked component in a fuel system, filter neglect can be the most costly. If not cleaned or replaced regularly, filter elements can become clogged resulting in reduced fuel flow, engine performance and ultimately, fuel pump or even worse, engine damage. By simply replacing and/or cleaning your filter elements regularly, you can avoid costly repairs to your fuel system and ensure peak engine performance.

Aeromotive recommends annual inspection and service of filter elements. This includes replacing 10-micron fabric elements and cleaning or replacing 100-micron stainless steel elements. Severe duty applications or newly installed systems may require more frequent maintenance.

Features

• Direct Replacement Filter Element For Filter P/N’s: P/N 12303, P/N 12353.
• Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.
• Approved for use in alcohol fuels including ethanol and methanol.
• Over 60-sq. inches of element surface area supports high flow while providing good service life.
• Cleanable 100-micron Stainless Steel mesh construction.
• Flow capacity of up to 600 plus GPH (10.00 GPM) with less than 1-PSI pressure drop.
• Supports up to 5,000 plus Flywheel HP, Forced Induction, on gasoline.
• Supports up to 4,000 Flywheel HP, Forced Induction on Ethanol.
• Supports up to 2,000 Flywheel HP, Forced Induction on Methanol.
• Ideal as a pre-pump filter with gasoline, ethanol and Methanol burning engines with small to medium Aeromotive fuel pumps from the 11109 to the A1000 and the SS series fuel pumps.
• Popular as a post pump filter with 12 Series (belt and hex driven) mechanical fuel pumps and Aeromotive Spur Gear Pumps up to 21 GPM.

Applications

• Universal

What's In The Box?

• 1 - Fuel Filter Element.

Warranty

• Manufacturer's Warranty
