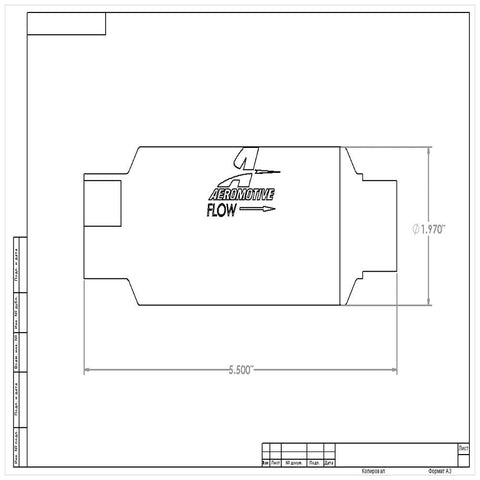

Aeromotive 100 Micron SS Element for ORB-10 Filter Housings (12604)

Replacement 100-M Stainless Element: ORB-10 Filter Housings by Aeromotive Inc.

Suitable as a pre-filter for fuel pumps up to 2.5 GPM with gasoline, diesel, ethanol and methanol fuels. May be a post filter with larger, 6 & 12-Series and Spur Gear Mechanical Fuel Pumps up to 21-GPM

Features

• Direct Replacement Filter Element For Filter P/N’s: P/N 12304, P/N 12324, P/N 12354, P/N 12307, P/N 12349, P/N 12379, P/N 12389, P/N 12331.
• Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.
• Approved for use in alcohol fuels including ethanol and methanol.
• Over 60-sq. inches of element surface area supports high flow while providing good service life.
• Cleanable 100-micron Stainless Steel mesh construction.
• Flow capacity of up to 600 plus GPH (10.00 GPM) with less than 1-PSI pressure drop.
• Supports up to 5,000 plus Flywheel HP, Forced Induction, on gasoline.
• Supports up to 4,000 Flywheel HP, Forced Induction on Ethanol.
• Supports up to 2,000 Flywheel HP, Forced Induction on Methanol.
• Ideal as a pre-pump filter with gasoline, ethanol and Methanol burning engines with small to medium Aeromotive fuel pumps from the 11109 to the A1000 and the SS series fuel pumps.
• Popular as a post pump filter with 12 Series (belt and hex driven) mechanical fuel pumps and Aeromotive Spur Gear Pumps up to 21 GPM.

Please Note: This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Applications

• Universal

What's In The Box?

• 1 - 100-M SS Filter Element

Warranty

• Manufacturer's Warranty
