AEM X-Series Inline Wideband UEGO Controller (30-0310)

X-Series Inline Wideband UEGO Controller features a weather-resistant, low-profile enclosure with status LEDs. It is ideal for users who do not need a gauge display and want the fastest response time when data logging or for feedback control when tuning with an engine management system.

The X-Series Inline Controller includes a 0-5v and RS232 Serial Port output for feedback control and data logging, and an AEMnet (CANbus) output for data logging and daisy chaining multiple X-Series Controllers together (up to 16 cylinders) for recording AFR in multiple cylinders. It supports vehicle/system voltages up to 16V, and can be used on EFI or carbureted applications, and dynamometers in applications using gasoline, methanol, ethanol, Diesel, propane and CNG.

X-SERIES WIDEBAND UEGO CONTROLLER FEATURES

• X-Series Inline Wideband UEGO AFR Controller were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitor wideband AFR controllers
• Includes Bosch 4.9LSU wideband UEGO sensor
• Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
• Compatible with vehicle/system voltages up to 16V
• 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
• Auto dimming feature
• Weather-resistant, low profile design

AFR VALUE RANGE BY FUEL TYPES:

• 0-5V Output Gasoline values from 8.5:1 to 18.0:1 AFR
• CANbus Output Gasoline values from 8.0:1 to 20.0:1 AFR
• CANbus Output Lambda values from .55 to 2.00
• 0-5V Output Lambda values from .58 to 1.23
• 0-5V Output E85 values from 5.7:1 to 12.0:1 AFR
• 0-5V Output Ethanol values from 5.2:1 to 11.0:1 AFR
• 0-5V Output Methanol values from 3.75:1 to 8.0:1 AFR

Please Note! These are not available yet, please contact our sales department (651) 348-8811 about pre ordering!

Applications

• Universal

What's in the Box?

• Inline Wideband UEGO Controller

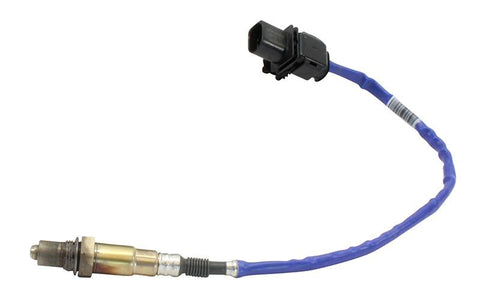

• Bosch LSU 4.9 Wideband Sensor

Warranty

• AEM 12 Month Limited Warranty
